MAXIM INTEGRATED / ANALOG DEVICES MAX4507EAP Signal Protector
The MAX4507EAP is a fault-protected, high-voltage signal-line protector designed to safeguard sensitive analog and digital input/output lines. It features fault protection up to +40V with power off and +36V with power on, providing open signal paths during faults and resistive clamping during overvoltage conditions. The device incorporates multiple, fault-protected, low-resistance channels, making it ideal for process control, redundant systems, and data acquisition applications. Its robust design ensures reliable operation during power sequencing and transient surges, preventing latchup and damage to downstream circuits.
MAXIM INTEGRATED / ANALOG DEVICES MAX4507EAP Signal Protector Specifications:
- Overvoltage Protection: +40V with power off, +36V with power on
- Open Signal Paths with Power Off
- Output Clamps to Either Rail During Overvoltage
- On-Resistance: 100Ω max, matched within 7Ω
- Leakage Current: Less than 0.5nA at +25°C
- Supply Voltage Range: +9V to +36V
- Power Dissipation: 250mW (derated above +70°C)
- Input Voltage Range: -36V to +36V (fault protected with power on)
- Temperature Range: -40°C to +85°C
- Channels: 8 independent protectors
- Package Options: 20-pin SSOP, 18-pin SO

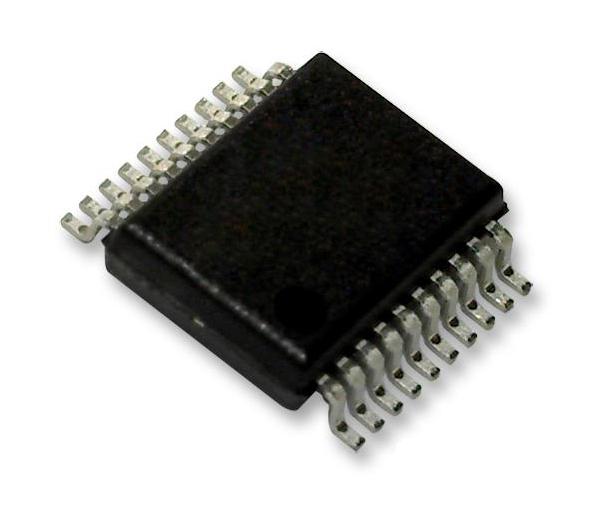

Buy the Maxim Series MAX4507EAP Fault-Protected Signal Protector: MAX4507EAP
Secure your critical systems with the Maxim Series MAX4507EAP fault-protected high-voltage signal protector. Its multiple channels provide robust overvoltage protection up to +40V with power off and +36V during operation, ensuring sensitive electronics are shielded from voltage transients and surges. Designed for industrial, process, and data acquisition systems, it features low on-resistance, minimal leakage current, and reliable fault handling. Purchase online now to enhance your system’s durability and prevent costly damage from overvoltage events, ensuring uninterrupted performance and safety.
Order your Maxim Series MAX4507EAP fault-protected high-voltage signal-line protector today and safeguard your sensitive circuits with reliable, industry-standard protection.
