MAXIM INTEGRATED / ANALOG DEVICES MAX4602EAET Quad CMOS Analog Switch
The MAX4602EAE+T from Maxim Integrated Products is a quad, CMOS analog switch with a 2.5-ohm on-resistance, packaged in a 16-pin SSOP. It features four normally open (NO) SPST switches with matched on-resistance of up to 0.5 ohms, consistent over the specified signal range. The device operates with a supply voltage ranging from 4.5V to 36V (or ±4.5V to ±20V) and a temperature range from -40°C to 85°C. It handles rail-to-rail signals, has TTL/CMOS logic thresholds with a minimum of +0.8V and maximum of +2.4V, and offers low leakage currents of no more than 2.5nA at 85°C. Suitable for low-distortion applications, it replaces mechanical relays in test equipment, communication systems, audio routing, avionics, and PBX systems. The device provides over 2000V ESD protection and is favored for its low power consumption, small footprint, and high reliability.
MAXIM INTEGRATED / ANALOG DEVICES MAX4602EAET Quad CMOS Analog Switch Specifications:
- On-Resistance: 2.5Ω max
- On-Resistance Match: 0.5Ω max
- On-Resistance Flatness: 0.52Ω max
- Supply Voltage Range: 4.5V to 36V (single), ±4.5V to ±20V (dual)
- Temperature Range: -40°C to 85°C
- Leakage Current at 85°C: ≤ 2.5nA
- Logic Thresholds: +0.8V to +2.4V
- ESD Protection: > 2000V
- Package: 16-pin SSOP
- Application: Low-distortion switching, relay replacement, test equipment, communication, audio routing, avionics, PBX systems

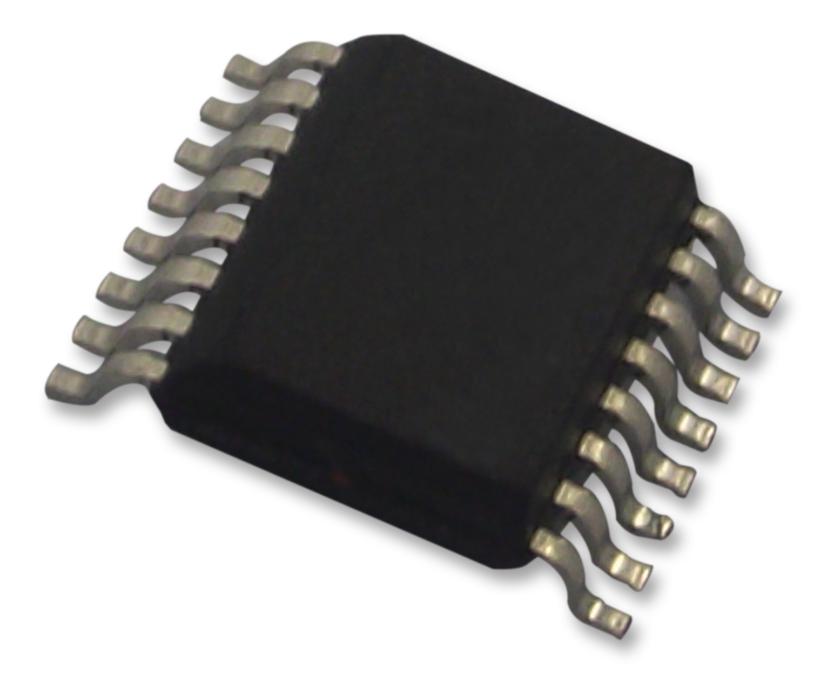

Buy the Buy Maxim Quad CMOS Analog Switch Part Number MAX4602EAET Online
Enhance your electronic projects with the MAX4602EAE+T quad CMOS analog switch. Featuring low on-resistance of 2.5Ω, wide supply voltage range from 4.5V to 36V, and low leakage currents, this device is perfect for low-distortion applications. It handles rail-to-rail signals, offers high ESD protection above 2000V, and maintains performance over a -40°C to 85°C temperature range. Compact and highly reliable, it suits test equipment, communication systems, audio routing, and avionics, ensuring seamless signal switching with easy online access.
Buy Maxim MAX4602EAET now and experience unmatched reliability and performance in low-resistance analog switching applications.
