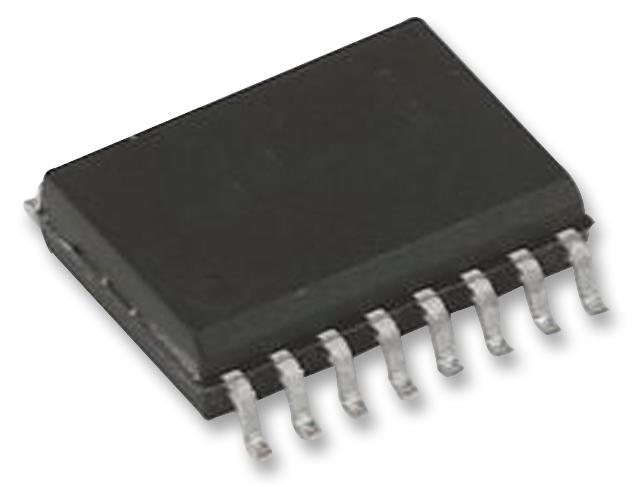

MAXIM INTEGRATED / ANALOG DEVICES MAX693CWE Microprocessor Supervisory Circuit
The MAX693CWE+ is a 16-pin WSOIC package microprocessor supervisory circuit designed to simplify power supply monitoring and battery control in microprocessor systems. It enhances system reliability and accuracy by providing functions such as reset generation during power-up, power-down, and brownout conditions; battery backup switching for CMOS RAM and microprocessors; a 1.3V threshold detector for power failure warnings; low battery detection; and reset pulse generation if the watchdog timer is not toggled within a set period. The device features separate outputs for watchdog timeout, backup battery switchover, and low VCC indication. It operates within a voltage range of 4.5V to 5.5V, has an operating temperature range of 0°C to 70°C, and includes write protection for CMOS RAM or EEPROM. Adjustable reset and watchdog timeout periods, minimal external components, low power consumption with a standby current of 1µA, and low voltage monitoring make it suitable for use in computers, controllers, intelligent instruments, automotive, portable devices, and other critical microprocessor applications where reliable power supervision is essential.
MAXIM INTEGRATED / ANALOG DEVICES MAX693CWE Microprocessor Supervisory Circuit Specifications:
- Supply Voltage Range: 4.5V to 5.5V
- Operating Temperature Range: 0°C to 70°C
- Voltage Monitor Threshold: 1.3V for power fail warning
- Reset Pulse Duration: 50ms
- Watchdog Timer: Fix at 1.6s, adjustable in some models
- Power Consumption: 1µA standby current
- Write Protection: CMOS RAM and EEPROM
- Low Battery Detection
- Multiple Separate Outputs for System Monitoring
- Minimal External Components Required
- Package: 16-pin Wide SOIC
- Typical Applications: Computers, Controllers, Automotive Systems, Portable Devices
- Operating Voltage Range: 4.5V to 5.5V
- Temperature Range: 0°C to 70°C
Buy the Maxim Series MAX693CWE: Microprocessor Supervisory Circuit: MAX693CWE
Get your Maxim Series MAX693CWE today and enhance the reliability of your microprocessor systems with advanced power supervision. This 16-pin WSOIC device offers reset functions during power fluctuations, battery backup switching, low voltage detection, and a watchdog timer, all with minimal external components. Its adjustable reset and watchdog periods, low power consumption of just 1µA standby, and write protection for CMOS RAM or EEPROM make it ideal for computers, automotive systems, portable devices, and critical control applications. Order online now for fast delivery and dependable performance.
Order your Maxim Series MAX693CWE today and ensure your microprocessor systems operate reliably with accurate power supervision and battery control.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX693CWE?
You can click on the BUY or RFQ button to purchase MAX693CWE from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX693CWE?
You can download the MAX693CWE datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX693CWE?
MAXIM INTEGRATED / ANALOG DEVICES
