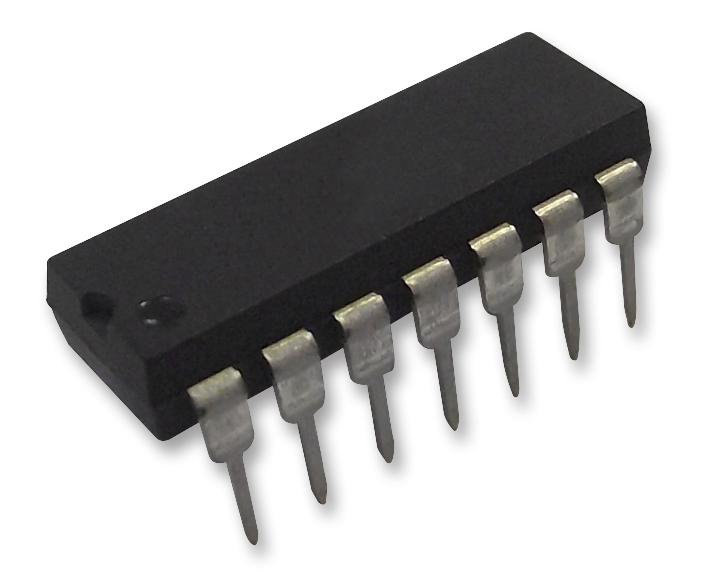

MAXIM INTEGRATED / ANALOG DEVICES MAX4614CPD Quad Analog Switch
The MAX4614CPD+ is a low-voltage, high-speed quad SPST CMOS analog switch housed in a 14-pin DIP package. It features a maximum on-resistance of 10 ohms, matched within 1 ohm, and remains flat over the specified signal range. Capable of handling analog signals from V+ to GND, it has minimal off-leakage current of 1nA at 25°C and 6nA at 85°C. Operating from 2V to 5.5V, the device offers fast switching times with tON of 12ns and tOFF of 10ns at 25°C, making it ideal for signal processing and portable systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX4614CPD Quad Analog Switch Specifications:
- Maximum On-Resistance: 10Ω across channels, matched within 1Ω
- On-Resistance Flatness: 1Ω over signal range
- Analog Signal Range: V+ to GND (2V to 5.5V supply)
- Off-Leakage Current: 1nA at 25°C, 6nA at 85°C
- Switching Times: tON = 12ns, tOFF = 10ns at 25°C
- Control Voltage: Logic compatible with TTL/CMOS standards
- On-Channel Bandwidth: 70MHz at 0dBm signal
- Charge Injection: 6.5pC
- Crosstalk: -96dB at 100kHz
- Supply Voltage Range: 2V to 5.5V
- Operating Temperature Range: 0°C to 70°C
- Package: 14-pin DIP
- Application Suitability: Signal routing, portable devices, communication systems
Buy the Analog Devices Series MAX4614 Low-Voltage CMOS: MAX4614CPD
Enhance your electronic designs with the MAX4614CPD+ low-voltage, high-speed quad CMOS analog switch. This 14-pin DIP package device offers exceptional on-resistance, minimal leakage current, and fast switching times. Designed for portable, battery-powered applications, it supports V+ to GND signal handling from 2V to 5.5V, ensuring compatibility with various power supplies. Its flat on-resistance, low charge injection, and high bandwidth make it perfect for signal processing, communication, and data acquisition systems. Reliable and easy to integrate, order online today to upgrade your next project with this efficient switching solution.
Order your Analog Devices Series MAX4614CPD today and give your projects fast switching and ultra-low leakage for high-performance signal routing.
