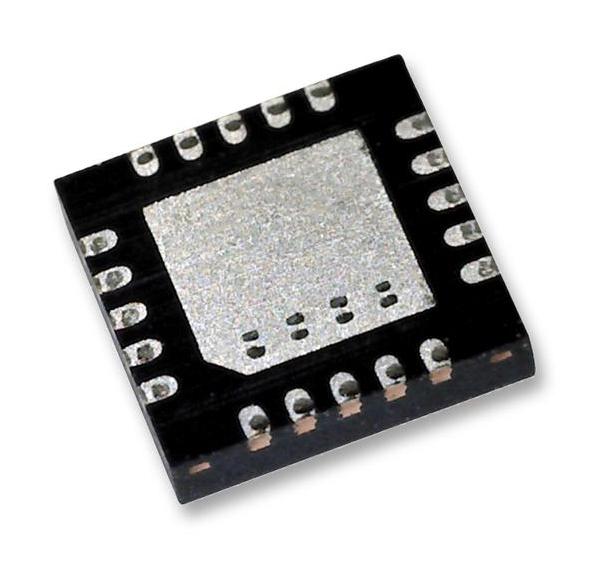

MAXIM INTEGRATED / ANALOG DEVICES MAX14723ATP Power Protection Module
The MAX14723 is an advanced power protection device designed for industrial systems, automation, and high-power applications. It features adjustable overvoltage, undervoltage, and overcurrent protection, ensuring system safety against faults. With a low 76mΩ on-resistance integrated FET, dual-stage current limiting, and thermal shutdown capabilities, it provides robust protection during startup and operation. The device supports a wide input voltage range of 5.5V to 58V, includes reverse-current blocking, and operates over -40°C to 125°C, making it ideal for demanding industrial environments.
MAXIM INTEGRATED / ANALOG DEVICES MAX14723ATP Power Protection Module Specifications:
- Input Voltage Range: +5.5V to +58V
- Overvoltage Lockout (OVLO): Adjustable from 6V to 40V, factory preset at 36V
- Undervoltage Lockout (UVLO): Adjustable from 5.5V to 24V, factory preset at 12V
- On-Resistance: 76mΩ (typical)
- Maximum Continuous Current: 2A
- Temperature Range: -40°C to +125°C
- Package: 20-pin TQFN (5mm x 5mm, with exposed pad)
- Reverse Current Blocking: Yes, with RIPEN pin controlled protection
- Dual-Stage Current Limiting: Autoretry, latchoff, or continuous modes
- Thermal Shutdown: Yes, at approx. 170°C with 20°C hysteresis
- Fault Indicator: FLAG open-drain output
- Enable Inputs: EN (low-voltage), HVEN (up to 58V capable)
- Protective Features: Reverse current, thermal foldback, and hot plug-in handling
Buy the Maxim MAX14723 – Reliable Power Protection for Industrial Applications
Order the Maxim MAX14723 online today and ensure maximum safety for your industrial power systems. This device provides precise overvoltage, undervoltage, and overcurrent protection, assisting in safeguarding large reservoir capacitors and sensitive components. Its robust protection features include thermal shutdown, reverse current blocking, and dual-stage current limiting, which help prevent system failures and reduce downtime. With a wide operating voltage range of 5.5V to 58V and a compact TQFN package, it simplifies integration into complex industrial environments, making it the ideal choice for engineers seeking reliable power management.
Buy Maxim MAX14723 now and experience unmatched reliability and performance in industrial power protection solutions.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX14723ATP?
You can click on the BUY or RFQ button to purchase MAX14723ATP from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX14723ATP?
You can download the MAX14723ATP datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX14723ATP?
MAXIM INTEGRATED / ANALOG DEVICES
