MAXIM INTEGRATED / ANALOG DEVICES MAX5189BEEI Dual 8-bit DAC
The MAX5189 is a dual 8-bit digital-to-analog converter (DAC) capable of high-speed operation up to 40MHz. It features integrated 400Ω resistors that convert the internal current output into a voltage, providing accurate and low-distortion analog signals. The device includes a 1.2V low-noise bandgap reference, which can be disabled for external reference use. It operates from a single power supply of 2.7V to 3.3V, supporting multiple modes including standby and shutdown for power efficiency. Ideal for applications in signal reconstruction, waveform generation, and RF communications, it ensures high dynamic range and low glitch impulse.
MAXIM INTEGRATED / ANALOG DEVICES MAX5189BEEI Dual 8-bit DAC Specifications:
- Resolution: 8 Bits
- Operating Frequency: up to 40MHz
- Analog Power-Supply Voltage: 2.7V to 3.3V
- Integrated 1.2V low-noise bandgap reference, disable-able for external reference
- Full-scale output current: up to 1.5mA per DAC
- Differential output: voltage mode with 400Ω on-chip resistors (MAX5189)
- Modes: normal, standby, shutdown with low power dissipation
- Output settling time: 25 ns
- Glitch impulse: 10 pV-s
- Supports simultaneous update of both DACs
- Package: 28-pin QSOP
- Operating temperature: -40°C to +85°C
- Built-in control amplifier and reference regulation
- Stability and high linearity with INL within ±1 LSB, monotonic DNL

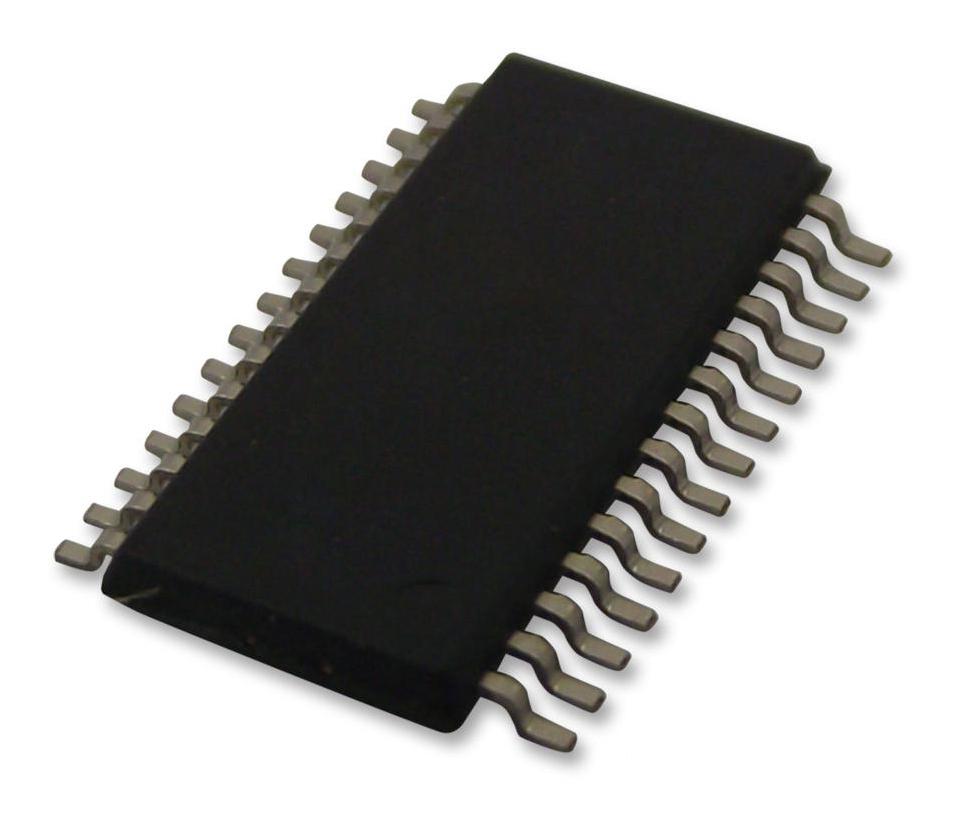

Buy the Maxim Series MAX5189 Digital-to-Analog Converter: MAX5189
Upgrade your electronic projects with the Maxim MAX5189 dual 8-bit DAC, operating at up to 40MHz for precise signal reconstruction and waveform generation. Featuring integrated 400Ω resistors, a stable 1.2V reference, and power modes for energy efficiency, it ensures reliable performance in communication and imaging applications. Easy to integrate on a compact 28-pin QSOP package, this versatile DAC provides low glitch impulse, excellent linearity, and quick wake-up from standby, making it an essential component for advanced analog signal processing.
Order your Maxim MAX5189 dual 8-bit DAC today and give your signal processing projects the dependable high-speed performance they deserve.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX5189BEEI?
You can click on the BUY or RFQ button to purchase MAX5189BEEI from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX5189BEEI?
You can download the MAX5189BEEI datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX5189BEEI?
MAXIM INTEGRATED / ANALOG DEVICES
