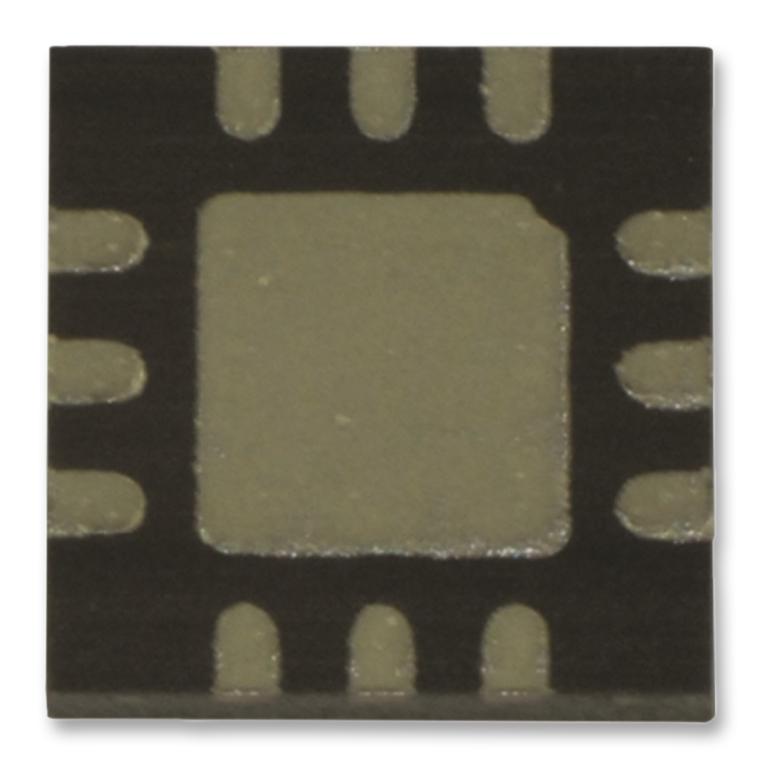

MAXIM INTEGRATED / ANALOG DEVICES MAX4734ETC Low-Voltage Analog Multiplexer
The MAX4734ETC+ is a low-voltage, 4-channel CMOS analog multiplexer in a compact 12-pin TQFN package. It supports rail-to-rail signals, consumes less than 4µW power, and features break-before-make switching. Compatible with 1.8V CMOS logic on a 3V supply, it is ideal for power routing, battery-powered systems, and data acquisition. With a maximum on-resistance of 2Ω at 25°C, fast switching times of 25ns on and 18ns off, off-isolation and crosstalk of -56dB, and low charge injection (35pC), it ensures high performance and reliable signal routing in low-voltage applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX4734ETC Low-Voltage Analog Multiplexer Specifications:
- Supply Voltage Range: 1.6V to 3.6V
- Operating Temperature: -40°C to 85°C
- Maximum On-Resistance: 2Ω at 25°C
- On-Resistance Match: 0.2Ω
- On-Resistance Flatness: 0.2Ω
- Break-Before-Make Delay: 7ns
- Switching Times: Turn-On = 25ns, Turn-Off = 18ns
- Off-Isolation at 1MHz: -56dB
- Crosstalk at 1MHz: -56dB
- Charge Injection: 35pC
- Current Capacity: Up to 150mA
- Power Consumption: Less than 4µW
- Package: 12-pin TQFN (3mm x 3mm)
- Logic Compatibility: 1.8V CMOS
- Supports Rail-to-Rail analog signals in low-voltage applications
Buy the Maxim Series MAX4734 Analog Multiplexer: MAX4734ETC
Enhance your signal routing with the MAX4734ETC+ low-voltage, 4-channel CMOS analog multiplexer. This compact device offers rail-to-rail signal support, quick switching times of 25ns on and 18ns off, and ultra-low power consumption of under 4µW. Its high current capacity of 150mA, break-before-make switching, and excellent on-resistance flatness ensure reliable performance in low-voltage systems such as battery-powered devices, data acquisition systems, and portable electronics. Easy to integrate, it’s an ideal choice for modern low-power applications.
Buy Maxim MAX4734ETC now and experience unmatched reliability and performance with low on-resistance, fast switching, and compact design for your electronics projects.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX4734ETC?
You can click on the BUY or RFQ button to purchase MAX4734ETC from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX4734ETC?
You can download the MAX4734ETC datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX4734ETC?
MAXIM INTEGRATED / ANALOG DEVICES
