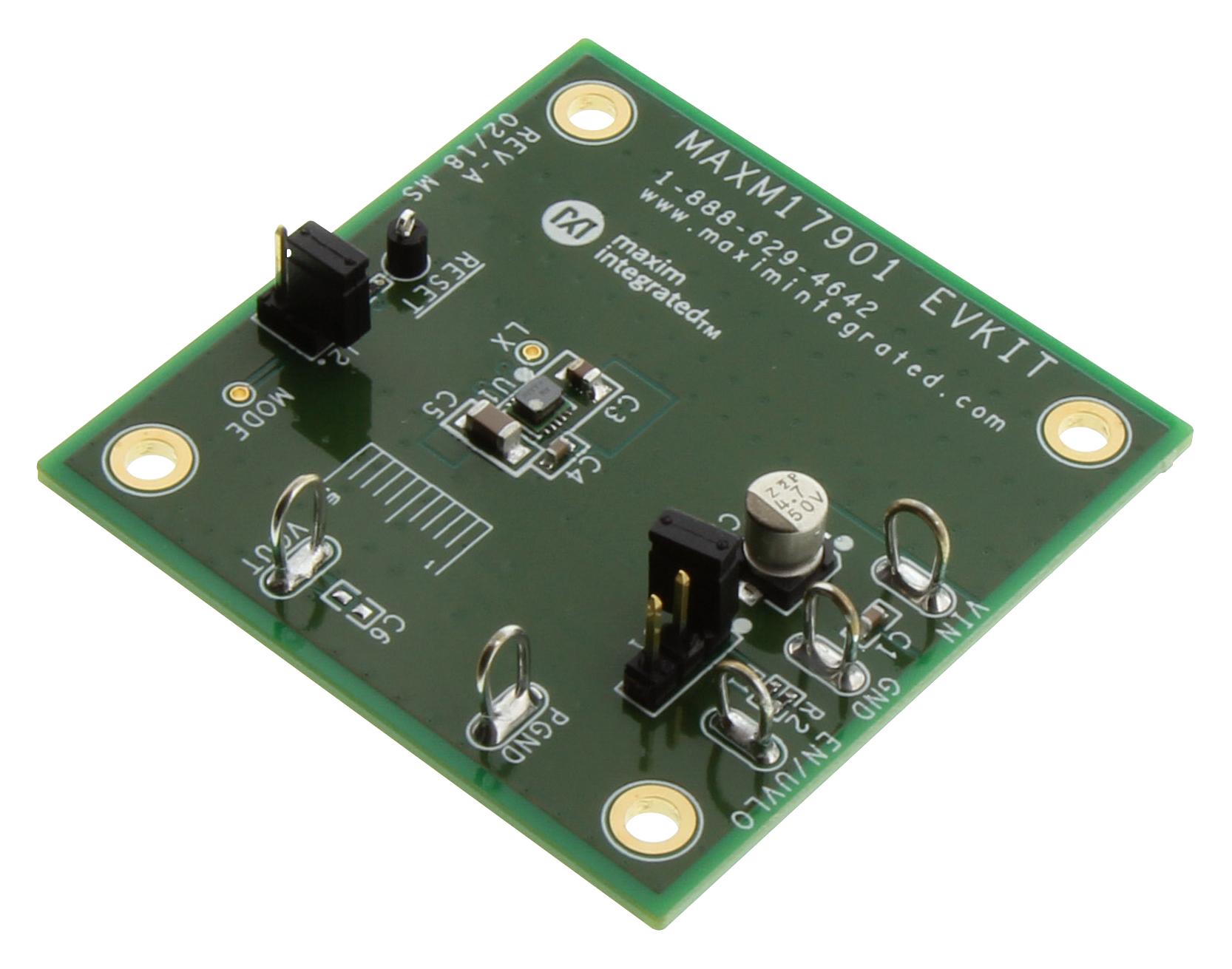

MAXIM INTEGRATED / ANALOG DEVICES MAXM17901EVKIT Power Module
This evaluation kit is designed for the MAXM17901 synchronous step-down DC-DC converter module, covering a wide input range of 5.5V to 24V. It provides a stable 3.3V output capable of delivering up to 300mA, with high efficiency around 85.51% at 12V input and 100mA load. Features include a 500kHz switching frequency, resistor-programmable UVLO, adjustable enable, PFM mode for light load efficiency, a fixed 4.1ms soft-start, an active-low RESET with pull-up resistor, and protections for overcurrent and temperature, making it suitable for industrial and power management applications.
MAXIM INTEGRATED / ANALOG DEVICES MAXM17901EVKIT Power Module Specifications:
- Input Voltage Range: 5.5V to 24V
- Output Voltage: 3.3V fixed
- Output Current: Up to 300mA
- Efficiency: Approximately 85.51% at 12V input, 3.3V output, 100mA load
- Switching Frequency: 500kHz
- Enable/UVLO Threshold: Resistor-programmable with jumper J1
- Soft-Start Time: Fixed at 4.1ms
- Protection: Overcurrent and overtemperature (OCP and OTP)
- EMI: Meets CISPR22 Class B standards with EMI filter
- Operating Temperature: Suitable for industrial environments
- Input Capacitor: ≥1µF/50V ceramic capacitor recommended
- Output Capacitor: 10µF/6.3V ceramic capacitor recommended
- Mode of operation: PWM or PFM selectable via jumper J2
- Additional features: RESET output, open-drain, pull-up resistor, low-profile surface-mount components
Buy the Maxim Series Power Module: MAXM17901 EV Kit: 3.3V Output
Purchase the MAXM17901 evaluation kit online today to take advantage of a proven, reliable solution for high-efficiency 3.3V step-down power conversion. Designed for industrial applications, this kit supports a wide input voltage of 5.5V to 24V and delivers up to 300mA of output current. Featuring resistor-programmable UVLO, PFM mode, a fixed 4.1ms soft-start, and protections against overcurrent and thermal issues, this fully assembled and tested kit simplifies testing, development, and deployment for engineers requiring robust power solutions.
Order your Maxim Series MAXM17901 EV Kit today and enhance your power management projects with reliable high-efficiency conversion.
