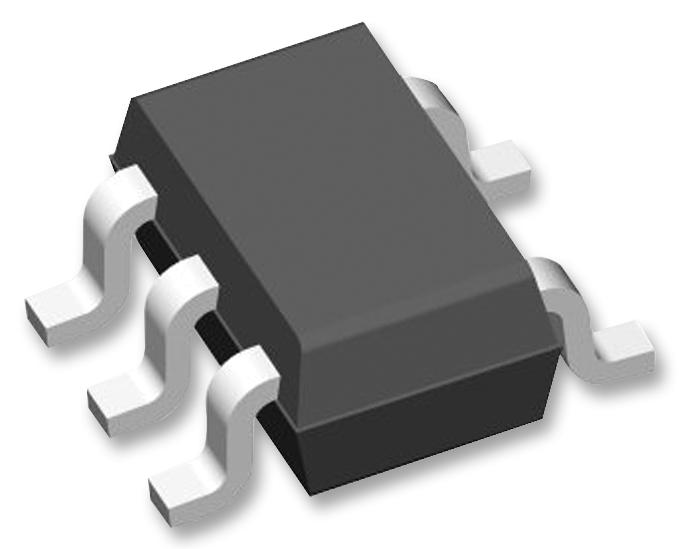

MAXIM INTEGRATED / ANALOG DEVICES MAX4785EXKT Analog Load Switch
The MAX4785EXK+T is a 50mA current-limited, low on-resistance analog switch in a 5-pin SC-70 package. It features internal current limiting to protect the host device from potential damage caused by faulty load conditions. The switch operates within a voltage range of 2.3V to 5.5V and has a typical on-resistance of 0.7 ohms. When turned on with a load connected, a 14ms blanking time allows transient voltages to settle; if the load current exceeds the set limit after this period, the device enters a latch-off state and asserts a flag signal to the microprocessor. The switch can be reset by cycling power or toggling the ON pin. Designed for load-switching applications, it is ideal for portable electronics such as PDAs, mobile phones, GPS devices, and handheld systems. Key features include a supply current of 65µA at 2.3V–5V, a shutdown current of 0.01µA, undervoltage lockout, fast current limiting response, reverse current protection, and thermal shutdown. The device is suitable for power management in portable and handheld electronic devices.
MAXIM INTEGRATED / ANALOG DEVICES MAX4785EXKT Analog Load Switch Specifications:
- Operating Voltage: 2.3V to 5.5V
- On-Resistance: 0.7Ω typical
- Current Limit: 50mA
- Blanking Time: 14ms
- Shutdown Current: 0.01µA
- Supply Current: 65µA
- Reverse Current Protection: Yes
- Thermal Shutdown: Yes
- Operating Temperature Range: -40°C to +85°C
- Package: 5-pin SC-70
- Maximum junction temperature: +150°C
- Input Voltage Logic High: ≥ 2.0V
- Input Voltage Logic Low: ≤ 0.8V
