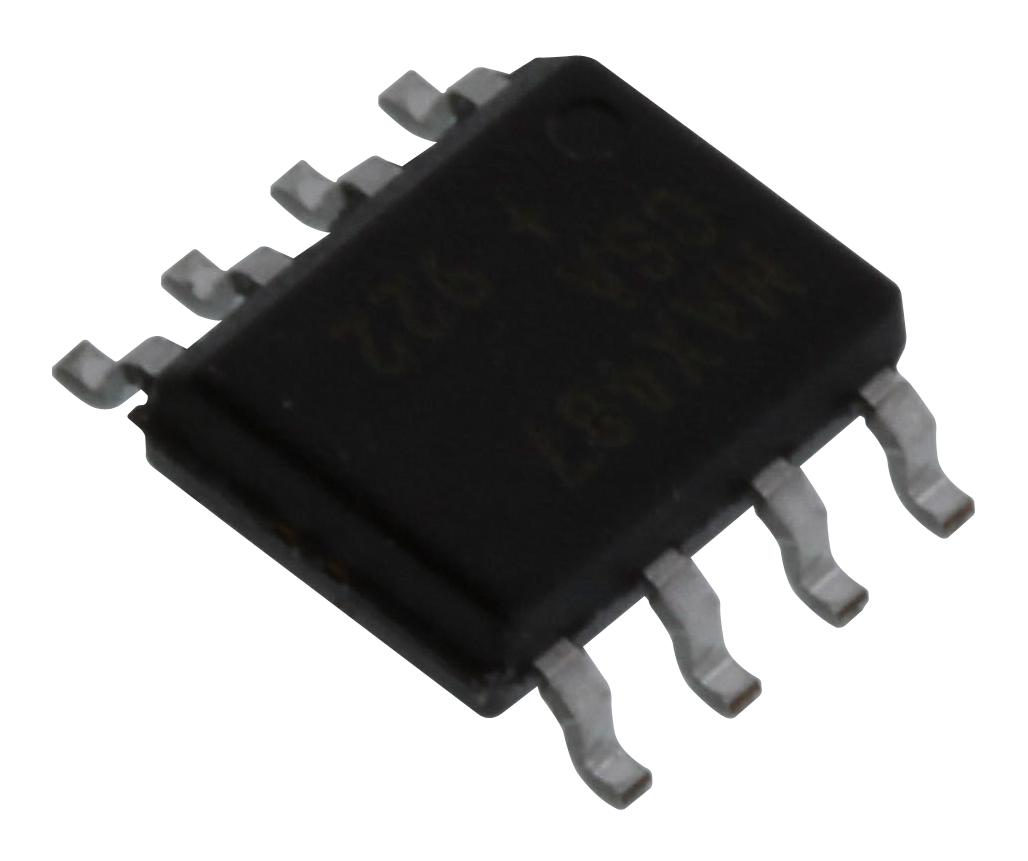

MAXIM INTEGRATED / ANALOG DEVICES MAX487CSA RS-485 transceiver
The MAX487CSA+ is a low-power, slew-rate-limited transceiver designed for RS-485 and RS-422 communication applications. Each device includes one driver and one receiver, with features that reduce electromagnetic interference (EMI) and signal reflections by limiting the driver slew rate. This enables reliable data transmission at speeds up to 250 kbps. The transceiver consumes between 120 and 500 microamps of current when idle or fully loaded with disabled drivers, and it includes a low-current shutdown mode that draws only 0.1 microamps. All units operate on a single 5V power supply. Drivers are protected against short circuits by current limiting and thermal shutdown, which places the outputs in a high-impedance state if necessary. The receiver input features a fail-safe design that outputs a logic-high signal when the input is open. The MAX487CSA+ is optimized for half-duplex communication systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX487CSA RS-485 transceiver Specifications:
- Data Rate: Up to 250 kbps
- Supply Voltage: 5V ±5%
- Current Consumption: 120 to 500 µA (idle/full load)
- Shutdown Mode Current: 0.1 µA
- Driver Protection: Short-circuit current limit, thermal shutdown
- Receiver Fail-safe: Outputs high when input is open
- Communication: Half-duplex
- Slew Rate: Limited for EMI reduction
- Package: 8-pin SO
- Operating Temperature Range: 0°C to +70°C
Buy the Maxim MAX487CSA Reliable RS-485 for Industrial Applications
Purchase the Maxim MAX487CSA+ online today and experience dependable RS-485 communication with low power consumption and excellent EMI performance. This half-duplex transceiver is perfect for industrial networks and remote data systems requiring robust, long-lasting operation. With protection features including short-circuit limiting and thermal shutdown, it ensures safety and durability. The device operates smoothly on 5V supply and provides fail-safe outputs for open inputs. Order now to ensure seamless connectivity for your industrial data transmission needs from a trusted supplier.
Get Maxim MAX487CSA today—built for reliable, low-power, half-duplex industrial data communication.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX487CSA?
You can click on the BUY or RFQ button to purchase MAX487CSA from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX487CSA?
You can download the MAX487CSA datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX487CSA?
MAXIM INTEGRATED / ANALOG DEVICES
