MAXIM INTEGRATED / ANALOG DEVICES MAX4951CTP SATA Re-Driver
The MAX4951 is a dual-channel buffer designed for serial-ATA signals, supporting data rates up to 6.0Gbps for SATA I and SATA II applications. It re-drives and re-establishes full signal levels to ensure data integrity over long cables or board traces, making it ideal for servers, desktops, notebooks, and data storage systems. Its small 4mm x 4mm TQFN package offers flow-through traces for easy layout, and it features digital boost controls, high-speed amplitude detection, and ESD protection for robust performance in high-speed data transmission environments. Operating from a single 3.3V supply, it complies with SATA standards, including eSATA levels and Out-Of-Band signaling support.
MAXIM INTEGRATED / ANALOG DEVICES MAX4951CTP SATA Re-Driver Specifications:
- Support for SATA I (1.5Gbps) and SATA II (3.0Gbps)
- Supports up to 6.0Gbps for next-generation applications
- Operates from a single +3.3V supply
- Small 4mm x 4mm TQFN package with flow-through traces
- Internal 50Ω termination for inputs and outputs
- Supports eSATA levels and Out-Of-Band signaling
- ESD protection up to +5.5kV Human Body Model
- Operating temperature range: 0°C to +70°C
- Supports digital boost controls for longer trace lengths
- High-speed amplitude detection circuit for OOB signals
- PWM-controlled output boost with internal pull-down resistors
- Supports high data rates with low jitter and proper signal integrity
- Low power standby mode when EN is driven low
- Pin-compatible with existing SATA re-driver designs
- Flow-through layout designed for easy PCB implementation

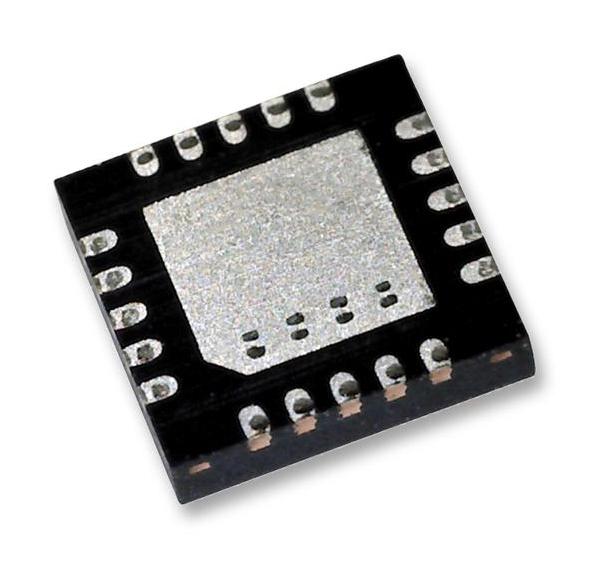

Buy the Buy Maxim MAX4951 SATA Re-Driver Part Number MAX4951CTP Online
Enhance your high-speed data systems with the Maxim MAX4951 SATA Re-Driver, supporting data rates up to 6Gbps with integrated digital boost controls and ESD protection. Compact and reliable, this dual-channel buffer restores signal quality over long cable runs, ensuring minimal jitter and excellent signal integrity. Its small 4mm x 4mm TQFN package simplifies PCB layout, making it ideal for servers, desktops, notebooks, and data storage solutions. Purchase the MAX4951 online today for dependable performance in your next-generation SATA and eSATA applications, ensuring your data transfer remains fast, stable, and noise-free for years to come.
Get Maxim MAX4951 today—designed for high-speed SATA applications with full signal integrity, low jitter, and robust ESD protection in a compact package.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX4951CTP?
You can click on the BUY or RFQ button to purchase MAX4951CTP from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX4951CTP?
You can download the MAX4951CTP datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX4951CTP?
MAXIM INTEGRATED / ANALOG DEVICES
