MAXIM INTEGRATED / ANALOG DEVICES MAX4989ETDT USB Switch
The MAX4989 is a bidirectional USB 2.0 switch that provides a 2-of-4 crosspoint configuration, supporting data rates up to 480Mbps. Designed for high-speed USB applications, it offers low on-resistance and low capacitance for efficient signal switching. The device operates from a single 2.7V to 5.5V supply, with an internal charge pump enabling full rail-to-rail operation. It features control logic inputs for simple configuration and a shutdown mode with extremely low supply current, making it suitable for portable and space-constrained devices such as notebooks and smartphones.
MAXIM INTEGRATED / ANALOG DEVICES MAX4989ETDT USB Switch Specifications:
- Supply Voltage Range: +2.7V to +5.5V
- On-Resistance: 5 to 9 Ω (at Vcc = 3.3V, 10mA load)
- Bandwidth: 1GHz (typical)
- Supply Current: 1 to 6.5 μA (enabled), 0.1 to 0.5 μA (shutdown)
- Operating Temperature: -40°C to +85°C

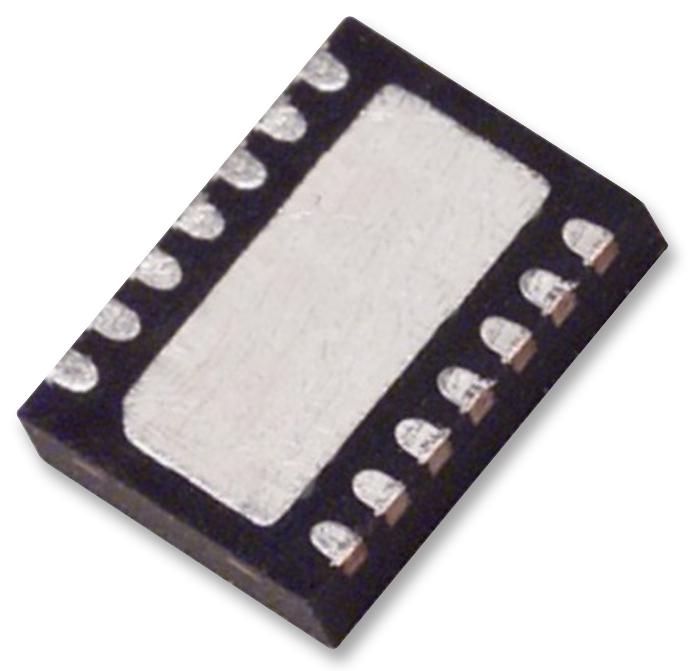

- Package: 14-pin TDFN, 3mm x 3mm
- Peak Current: 240mA (pulsed, 10ms duty cycle)
- Junction Temperature: +150°C
- Electrical Characteristics: Includes low on-resistance, high bandwidth, low leakage currents, and fast switching times
- Control Inputs: Rail-to-rail logic compatible, three control pins (CO, C1, C2), low hysteresis
- Input Voltage Range: 0V to Vcc
- Shutdown Mode: High impedance, power consumption < 0.5 μA
- Thermal Resistance: Junction-to-ambient 41°C/W, Junction-to-case (varies)
Buy the Maxim Series USB 2.0 Switch: MAX4989ETDT
Purchase the Maxim Series USB 2.0 Switch MAX4989ETDT online today and enhance your device's USB connectivity with high-speed, low-resistance switching. This compact, 14-pin TDFN package supports data rates up to 480Mbps and features low power consumption with an internal charge pump for full rail-to-rail operation. Easy to control via logic inputs and capable of handling high peak currents, it is ideal for portable devices like smartphones and notebooks where space and power efficiency are critical. Secure your order now for reliable and efficient USB signal management.
Order your Maxim Series USB 2.0 Switch MAX4989ETDT today and ensure reliable high-speed USB signal routing for your portable and embedded systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX4989ETDT?
You can click on the BUY or RFQ button to purchase MAX4989ETDT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX4989ETDT?
You can download the MAX4989ETDT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX4989ETDT?
MAXIM INTEGRATED / ANALOG DEVICES
