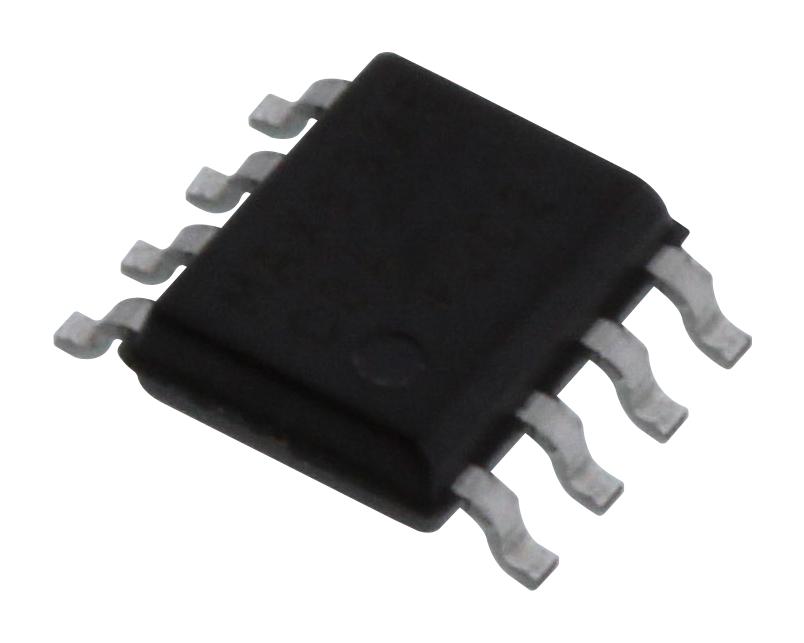

MAXIM INTEGRATED / ANALOG DEVICES MAX6325CSA Voltage Reference
The MAX6325 is a highly stable, low-noise voltage reference with a 2.5V output, ideal for high-precision data conversion, industrial control, and digital voltmeter applications. Featuring a typical temperature coefficient of 1ppm/°C, it offers excellent line and load regulation with guaranteed load currents up to 15mA. Its buried-zener technology ensures minimal noise, low power consumption of 18mW, and stable performance across input voltages from 8V to 36V. The device includes optional noise reduction and external voltage trimming for enhanced precision.
MAXIM INTEGRATED / ANALOG DEVICES MAX6325CSA Voltage Reference Specifications:
- Input Voltage Range: 8V to 36V
- Output Voltage: 2.5V (MAX6325)
- Temperature Coefficient: 1ppm/°C (typical)
- Initial Accuracy: +0.02%
- Load Regulation: 6 ppm/mA
- Line Regulation: 7 ppm
- Output Noise Voltage: 2.8uVRMS (0.1Hz to 10Hz)
- Supply Current: 18mA
- Power Consumption: 18mW
- Output Impedance: Low at high frequencies
- Operating Temperature Range: 0°C to +70°C (CPA), -40°C to +85°C (EPA), -55°C to +125°C (MJA)
- Pinout: Industry-standard 8-pin package
- Long-term Stability: 30 ppm/1000 hours
- Package Types: Plastic DIP, SO, CERDIP
Buy the Maxim Series Voltage Reference: MAX6325
Purchase the Maxim MAX6325 voltage reference online today for high-precision, low-noise performance. Designed for industrial and measurement applications, it offers excellent temperature stability, minimal noise, and guaranteed load regulation up to 15mA. Its compact 8-pin package and optional trimming capability make it suitable for a wide range of high-accuracy systems. Enjoy fast shipping, trusted quality, and expert support when buying the MAX6325 online for your high-resolution data conversion, industrial process control, or precision voltage reference needs.
Get Maxim MAX6325 today—built for precision and long-lasting durability in high-resolution data-conversion systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX6325CSA?
You can click on the BUY or RFQ button to purchase MAX6325CSA from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX6325CSA?
You can download the MAX6325CSA datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX6325CSA?
MAXIM INTEGRATED / ANALOG DEVICES
