MAXIM INTEGRATED / ANALOG DEVICES MAX504CPD Digital-to-Analog Converter
The MAX504CPD+ is a low-power, 10-bit digital-to-analog converter (DAC) in a 14-pin DIP package. It operates from a single +5V power supply, with the option to use ±5V supplies. The DAC features a 2.048V internal reference and draws only 260µA of current. It is factory-trimmed for offset voltage, gain, and linearity, eliminating the need for external adjustments. The internal op-amp can be configured for gain of 1 or 2 and support unipolar or bipolar output voltages. Additionally, it can function as a four-quadrant multiplier without external resistors or op-amp. Typical applications include battery-powered test instruments, digital offset and gain adjustment devices, and motion control equipment. The device supports a supply voltage range of 4.5V to 5.5V, operates within 0°C to 70°C, and is compatible with SPI, QSPI, and Microwire interfaces. It provides buffered voltage output with power-on reset, boasts high linearity with INL of ±0.5LSB and DNL of ±1LSB, and maintains minimal offset and gain errors under specified conditions. The output can be flexibly ranged from 0V to VDD or VSS to VDD, featuring serial data output for daisy chaining. It offers robust load regulation and temperature stability suitable for various electronic applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX504CPD Digital-to-Analog Converter Specifications:
- Resolution: 10 Bits
- Reference Voltage: 2.048V (internal, laser trimmed)
- Supply Voltage Range: 4.5V to 5.5V
- Supply Current: 260µA typical
- Input Resistance at code 0101: 40kΩ
- Reference Output Voltage: 2.048V ±20mV at 25°C
- Reference Output Tempco: 30 ppm/°C
- Output Voltage Range: 0 V to VDD or VSS to VDD depending on configuration
- Gain: 1 or 2 (configurable)
- Linearity: INL ±0.5LSB, DNL ±1LSB
- Operating Temperature: 0°C to 70°C
- Power-On Reset: Yes
- Serial Interface Compatibility: SPI, QSPI, Microwire
- Output Drive Capability: >2kΩ load, short-circuit protected

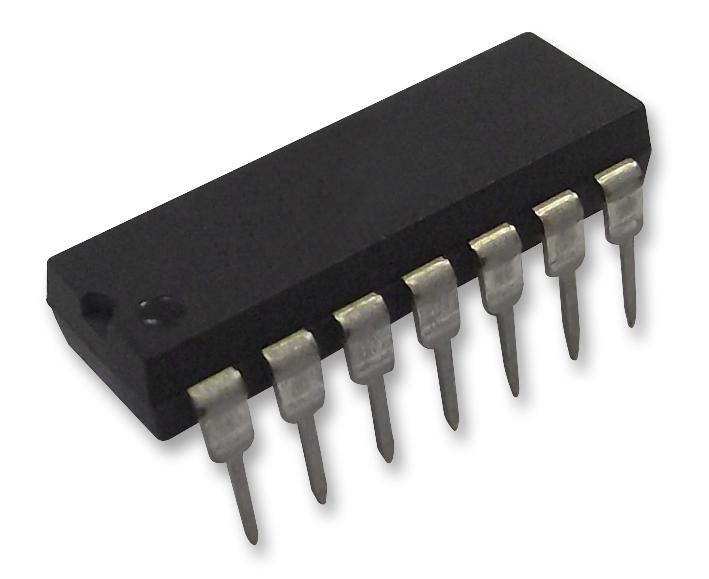

Buy the Buy MAXIM MAX504CPD Low-Power 10-Bit DAC Part Number MAX504CPD Online
Purchase the MAXIM MAX504CPD online today to enhance your electronic systems with a high-precision, low-power 10-bit DAC. Ideal for battery-powered devices, industrial control, and test equipment, it offers configurable gain, internal reference, and excellent linearity. Its compact 14-pin DIP package ensures easy integration, while seamless SPI, QSPI, and Microwire compatibility simplifies your design. Rely on this robust device for superior analog output quality, minimal offset and gain errors, and efficient power consumption. Order now and elevate your application’s performance and accuracy.
Buy MAXIM MAX504CPD now and experience unmatched reliability and performance in digital-to-analog conversion for your electronic projects.
