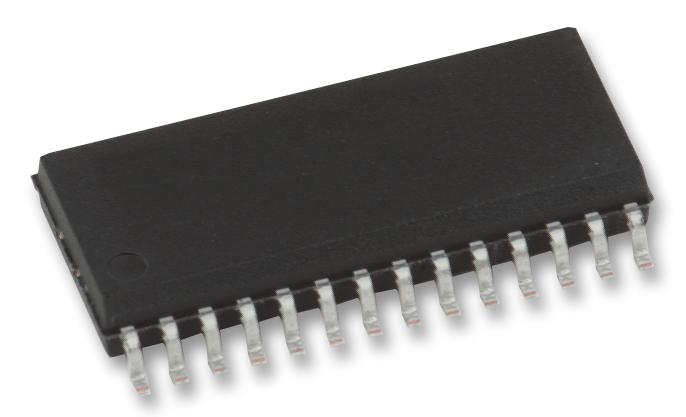

MAXIM INTEGRATED / ANALOG DEVICES MAX213EEWI RS-232 Transceiver
The MAX213EEWI+ is a TTL tri-state ±15KV ESD protected, +5V RS232 transceiver in a 28-pin WSOIC package. It features high ESD protection and integrated charge pump circuitry for single 5V operation. This device complies with all EIA/TIA232E and CCITT V.28 specifications at data rates up to 120 kbps when loaded. It includes four drivers and five receivers, operates within a voltage range of 4.5V to 5.5V, and supports an operating temperature from -40°C to 85°C. The typical supply current is 14mA, with a shutdown mode that reduces power consumption to 15µA. The transceiver is suitable for use in battery-powered equipment and various applications including communications and networking, portable devices, and medical devices.
MAXIM INTEGRATED / ANALOG DEVICES MAX213EEWI RS-232 Transceiver Specifications:
- Package Type: 28-pin WSOIC
- Voltage Range: 4.5V to 5.5V
- ESD Protection: ±15KV Human Body Model
- Data Rate: up to 120 kbps
- Drivers: 4, Receivers: 5
- Supply Current: 14mA (normal mode), 15µA (shutdown mode)
- Operating Temperature: -40°C to 85°C
- Charge Pump Circuitry: Integrated for single +5V operation
- Maximum Receiver Input Voltage: ±25V
- Compliance: EIA/TIA-232E, CCITT V.28
Buy the Maxim MAX213EEWI – Reliable RS232 Transceiver for Industrial Applications
Enhance your communication systems with the Maxim MAX213EEWI RS-232 transceiver, offering high ESD protection, integrated charge pump circuitry, and compliance with industrial standards. Its compact 28-pin WSOIC package ensures easy integration into space-constrained designs. With support for data rates up to 120 kbps and operation from a single +5V supply, it is ideal for portable, medical, and networking applications. Durable and low power, the MAX213EEWI provides the reliability needed for demanding environments, making it a perfect choice for engineers seeking quality and performance in RS-232 communication solutions.
Order your Maxim MAX213EEWI transceiver today and ensure reliable, high-speed communication in your portable or industrial projects.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX213EEWI?
You can click on the BUY or RFQ button to purchase MAX213EEWI from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX213EEWI?
You can download the MAX213EEWI datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX213EEWI?
MAXIM INTEGRATED / ANALOG DEVICES
