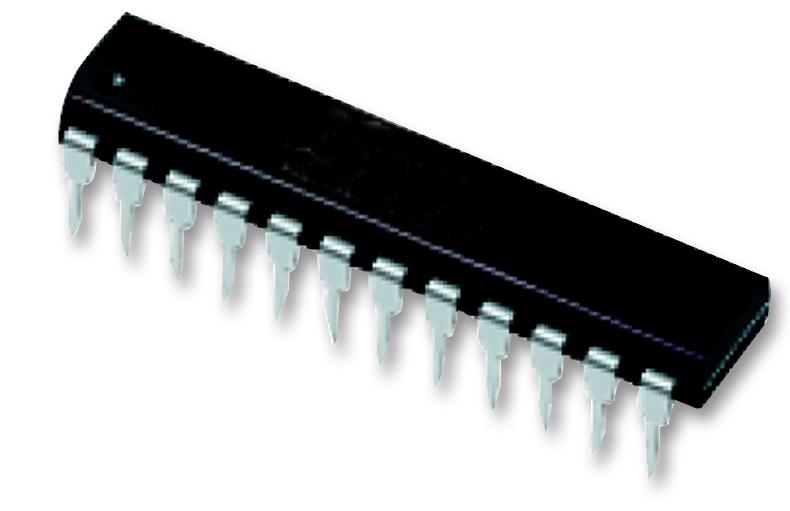

MAXIM INTEGRATED / ANALOG DEVICES MAX507BCNG 12-Bit DAC

The MAX507BCNG+ is a 12-bit digital-to-analog converter (DAC) in a 24-pin DIP package with an internal voltage reference. It features a laser-trimmed, thin-film R-2R resistor array and NMOS switches for precise voltage output proportional to the reference. The DAC's double-buffered logic interface is compatible with TTL and CMOS level signals, allowing easy data transfer from microprocessors via an 8-bit or 16-bit data bus. It supports both single (+12V) and dual (±15V) power supplies, with on-board gain resistors enabling output voltage ranges of 0V to +5V, 0V to +10V, and ±5V when powered with dual supplies. Designed for applications such as waveform generation, calibration, and digital offset adjustments, it features a voltage slew rate of 2V/µs, a short circuit current of 40mA, and an internal buried Zener reference with a maximum output of 5.01V at 25°C. The device operates across temperatures from 0°C to 70°C and can drive loads up to 2kΩ to +10V, making it ideal for signal processing, industrial automation, and motor control applications.

View MAX507BCNGDatasheet [pdf]

Buy the Maxim MAX507BCNG – Reliable 12-Bit DAC for Industrial Applications

Enhance your industrial automation and signal processing systems with the MAX507BCNG 12-bit DAC. Featuring internal voltage reference, support for single and dual power supplies, and multiple output ranges, this device ensures precise voltage output for waveform generation, calibration, and control applications. Its fast slew rate of 2V/µs, capable load drive, and low noise make it ideal for demanding environments. Easy microprocessor interfacing, broad operating temperatures, and robust load capabilities facilitate seamless integration into your engineering solutions. Order online for fast delivery and reliable performance.

Buy Maxim MAX507BCNG now and experience unmatched precision, versatility, and performance in your signal processing and automation projects.
