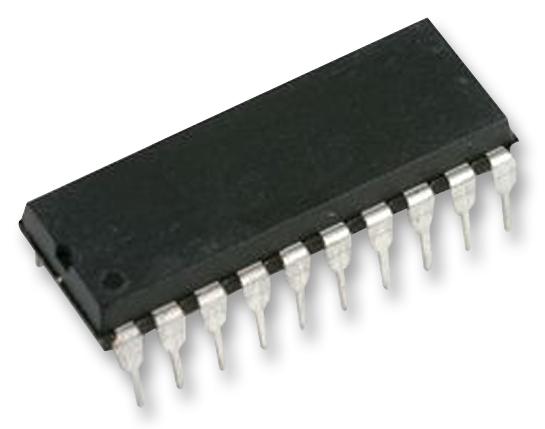

MAXIM INTEGRATED / ANALOG DEVICES MAX525BCPP Quad Voltage DAC
The MAX525BCPP+ is a low power, quad 12-bit voltage output digital-to-analog converter (DAC) with a serial interface, housed in a 20-pin DIP package. It features four voltage outputs, each with an individual amplifier, and provides access to negative inputs for gain configuration, remote sensing, and high drive capacity, ideal for industrial-control applications. The DACs use a double-buffered input structure, with data loaded via a 16-bit serial word compatible with SPI, QSPI, and MICROWIRE. Both independent and simultaneous register updates are supported, with logic inputs TTL/CMOS compatible. Operating at 4.5-5.5V, it includes power-on reset, recall function, user-programmable digital outputs, low supply current, and high linearity, suited for industrial automation, process control, test equipment, and motion control systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX525BCPP Quad Voltage DAC Specifications:
- Resolution: 12 Bits
- Output Voltage: 0 to VREF (0-14V range)
- Reference Input Voltage Range: OV to (Vpp - 1.4V)
- Power Supply Voltage: 4.5V to 5.5V
- Supply Current: 0.85mA (normal), 10μA (shutdown)
- Operating Temperature: 0°C to 70°C
- Offset Error: ±6.0 mV
- Gain Error: ±2.0 LSB
- Integral Non-Linearity: ±1 LSB
- Output Buffer Slew Rate: 0.6 V/μs
- Settling Time: 12 μs
- Reference Input Resistance: Minimum 8 kΩ at code 555 hex
- Serial Interface: SPI/QSPI/MICROWIRE compatible, 16-bit data word
- Input Buffer: Double-buffered with input register and DAC register
- Outputs: Four voltage outputs with individual feedback
- Power-On Reset: Clears all DACs and registers to zero
- Digital Inputs: TTL/CMOS compatibility
- Pin Package: 20 Pin DIP
- Maximum Input Ratings: Vpp to AGND and DGND (-0.3V to +6V)
- Dimensions: Refer to datasheet for detailed dimensions
- Certifications: Not specified, refer to datasheet packaging details
Buy the Maxim Series MAX525 DAC: 12-Bit Quad Voltage-Output Serial Interface
Order the Maxim Series MAX525BCPP+ online today and enhance your industrial control systems with this low-power, high-precision 12-bit quad DAC. Designed for accuracy and efficiency, it features four voltage outputs, support for SPI/QSPI/MICROWIRE protocols, and a power-on reset function that clears all registers automatically. Its robust design, operating from 4.5V to 5.5V, includes low supply current, high linearity, and a fast settling time of 12 microseconds. Perfect for process control, automation, and motion systems, it ensures reliable performance and easy integration into complex systems. Buy now and streamline your signal processing applications with this dependable, professionally tested DAC.
Buy Maxim Series MAX525BCPP+ now and experience unmatched reliability and high-precision output for industrial automation and control systems.
