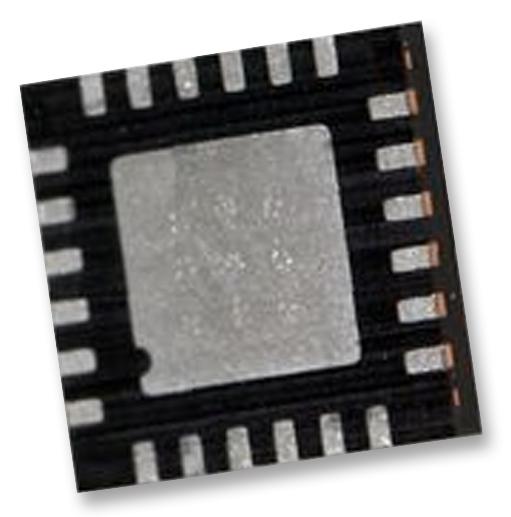

MAXIM INTEGRATED / ANALOG DEVICES MAX5184ETG Voltage Output DAC
The MAX5184ETG+ is a high-performance 10-bit, 40MHz voltage output digital-to-analog converter housed in a compact 24-pin TQFN package. It features an internal precision resistor for precise signal reconstruction and arbitrary waveform generation, ideal for signal processing, imaging, and video applications. The DAC employs glitch-free operation with minimal spurious signals, supported by an onboard 1.2V low-noise bandgap reference that can be disabled for external referencing. Multiple power modes including normal, low power standby, and shutdown enable efficient power management, with shutdown current as low as 1µA. Operating from 2.7V to 3.3V, it ensures high signal integrity with a wide dynamic range of 70dB at 2.2MHz. The device offers a quick 25ns settling time, INL and DNL errors within ±0.5LSB, zero scale error of ±8LSB, and full-scale error of ±15LSB. Its output voltage is 400mV with a maximum full-scale current of 1mA, making it suitable for precise analog signal generation and control in demanding electronic systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX5184ETG Voltage Output DAC Specifications:
- Resolution: 10 Bits
- Maximum clock frequency: 40MHz
- Analog output voltage: 400mV
- Full-scale output current: 1mA
- Output voltage range: 1.12V to 1.28V (internal reference), can be disabled for external reference
- Zero scale error: ±8LSB
- Full-scale error: ±15LSB
- Integral Nonlinearity: ±0.5LSB
- Differential Nonlinearity: within ±0.5LSB, guaranteed monotonic
- Settling time: 25ns
- Spurious free dynamic range: 70dB at 2.2MHz
- Output load: 400Ω with differential voltage output
- Power supply: 2.7V to 3.3V
- Power consumption: approx. 1.7mA (analog), 4.2mA (digital)
- Operating temperature: -40°C to 85°C
- Package: 24-pin TQFN with exposed pad
- Reference input: internal 1.2V bandgap, can be externalized
- Shutdown current: 1µA
- Supports normal, standby, and shutdown modes
