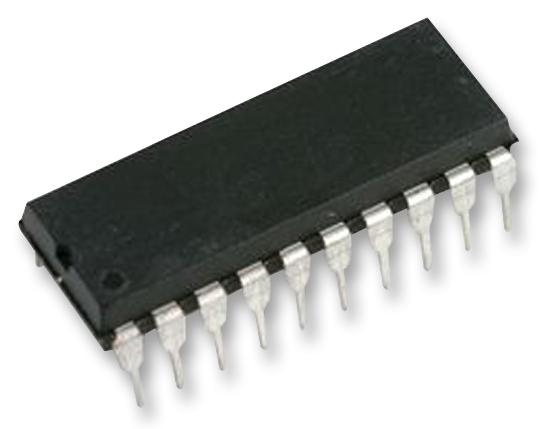

MAXIM INTEGRATED / ANALOG DEVICES MAX521ACPP Octal DAC
The MAX521ACPP+ is an octal, 8-bit DAC with rail-to-rail outputs, supporting 2-wire I2C interface at 400 kbps. It operates from a single 5V supply, with separate or shared reference inputs for precise analog output control. Featuring double-buffered registers, power-down mode reducing current to 4 µA, and power-on reset to 0V, it is ideal for minimal component analog systems, digital offset/gain adjustment, and programmable attenuators. Its key specs include a 0°C to 70°C operation, 1V/µs slew rate, 10mA current, and ±1.5LSB unadjusted error, with output settling time of 6µs and guaranteed monotonicity.
MAXIM INTEGRATED / ANALOG DEVICES MAX521ACPP Octal DAC Specifications:
- Supply Voltage: 4.5V to 5.5V
- Package: 20-pin DIP
- Interface: I2C compatible, up to 400kbps
- Resolution: 8 Bits
- Output Type: Rail-to-Rail voltage output buffers
- Output Slew Rate: 1V/µs
- Power Consumption: Typically 10mA
- Reference Inputs: Separate for each DAC or shared
- Operation Temperature Range: 0°C to 70°C
- Output Settling Time: 6 microseconds with 10kΩ load and 100pF capacitor
- Output Errors: Zero code error 18mV, Full scale error 18mV
- Unadjusted Error: ±1.5LSB
- Differential Nonlinearity: Guaranteed monotonic ±1LSB
- Power-On Reset: Clears all registers to 0V
- Power-down Mode: Reduces current to 4µA
- DNL: ±1LSB
Buy the Maxim MAX521ACPP+ – Reliable 8-Bit DAC for Industrial Applications
Order the Maxim MAX521ACPP+ octal 8-bit DAC online now and experience precise analog output control with rail-to-rail voltage buffering, ultra-low power consumption, and a simplified I2C interface. This device ensures reliable operation in industrial systems, offering quick settling times, power-down modes, and a power-on reset feature. Perfect for minimal component applications, digital offset adjustments, and programmable attenuators, it enables seamless integration and enhanced system performance. Purchase today to upgrade your analog control solutions with a trusted, high-accuracy DAC designed for demanding environments.
Get Maxim MAX521ACPP+ today—built for precision and long-lasting durability in your industrial and automation systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX521ACPP?
You can click on the BUY or RFQ button to purchase MAX521ACPP from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX521ACPP?
You can download the MAX521ACPP datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX521ACPP?
MAXIM INTEGRATED / ANALOG DEVICES
