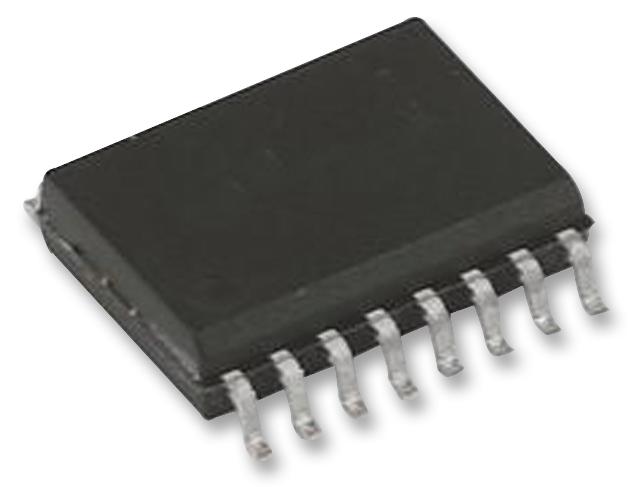

MAXIM INTEGRATED / ANALOG DEVICES MAX329CWE Differential CMOS Multiplexer
The MAX329CWE+ is an ultra-low leakage, monolithic CMOS analog multiplexer in a 16-pin WSOIC package. It functions as a differential, dual 4-channel multiplexer designed to minimize on and off leakages, making it ideal for switching signals from high source impedances. This device supports high input impedance applications such as op-amps and A/D converters. Adding an external 40 kΩ resistor to each input enhances fault tolerance. With low leakage and a 3.5 kΩ on-resistance, it can sustain 110V AC faults indefinitely while maintaining less than 40 nV error for normal signals. It operates across a supply voltage range of 10V to 30V or ±5V to ±18V, including unbalanced supply configurations like +12V/-5V or +5V/-15V. Applications include control and data logging systems, aircraft heads-up displays, data acquisition, and signal routing. Features include bidirectional operation, operation from 0°C to 70°C, compatibility with TTL and CMOS logic, and low power dissipation of 1.9mW with ±15V supplies. The device has a switching speed of less than 1.5 μs, latch-up proof construction, and charge injection of 5 pC at VA = 0V.
MAXIM INTEGRATED / ANALOG DEVICES MAX329CWE Differential CMOS Multiplexer Specifications:
- Package: 16-pin WSOIC
- Operation Temperature Range: 0°C to 70°C
- Supply Voltage Range: 10V to 30V or ±5V to ±18V
- On-Resistance: 3.5 kΩ
- Leakage Current: Less than 40 nV error for normal signals, less than 1 pA leakage
- Switching Speed: Less than 1.5 μs
- Charge Injection: 5 pC at VA = 0V
- Low Power Dissipation: 1.9 mW with ±15V supplies
- Compatibility: TTL, CMOS logic
- Fault Tolerance: External 40 kΩ resistor added per input for indefinite 110V AC fault withstand
- Bidirectional operation supporting multiplexing or demultiplexing
- Operation supported with unbalanced power supplies such as +12V/-5V and +5V/-15V
