MAXIM INTEGRATED / ANALOG DEVICES MAX22702DASA Gate Driver Module
The MAX22702DASA is a highly reliable, single-channel isolated gate driver designed for driving SiC and GaN transistors in inverter and motor control applications. It features an ultra-high common-mode transient immunity of 300kV/μs, integrated digital galvanic isolation rated for 3kVRms for 60 seconds, and supports a minimum pulse width of 20ns with maximum propagation delay matching of 5ns over a temperature range of -40°C to +125°C. The device offers flexible input configurations, an adjustable UVLO, and robust EMI immunity, making it ideal for high-voltage, high-speed switching environments with optimal thermal performance and safety certification under UL1577.
MAXIM INTEGRATED / ANALOG DEVICES MAX22702DASA Gate Driver Module Specifications:
- Isolation Voltage: 3kVRms for 60 seconds
- Common-Mode Transient Immunity: 300kV/μs (typ)
- Pulse Width: Minimum 20ns
- Propagation Delay: 35ns at room temperature, matching within 2ns (max)
- Operating Temperature Range: -40°C to +125°C
- Package: 8-pin narrow SOIC, thermal resistance junction-to-ambient 106.54°C/W
- Input Configurations: Differential (INP, INN) or Single-ended (IN, EN)
- Supply Voltage: Vppa and Vppp, with maximum Vppp of 36V
- Output Voltage High: Approximately 19.95V at 10mA load
- Thermal Shutdown Temp: 160°C (typ), hysteresis 25°C
- UL and cUL certified under UL1577 for industrial safety standards
- Gate Resistance: Rpson of 1.25Ω (Max for MAX22700/02) and 2.5Ω (Max for MAX22701)

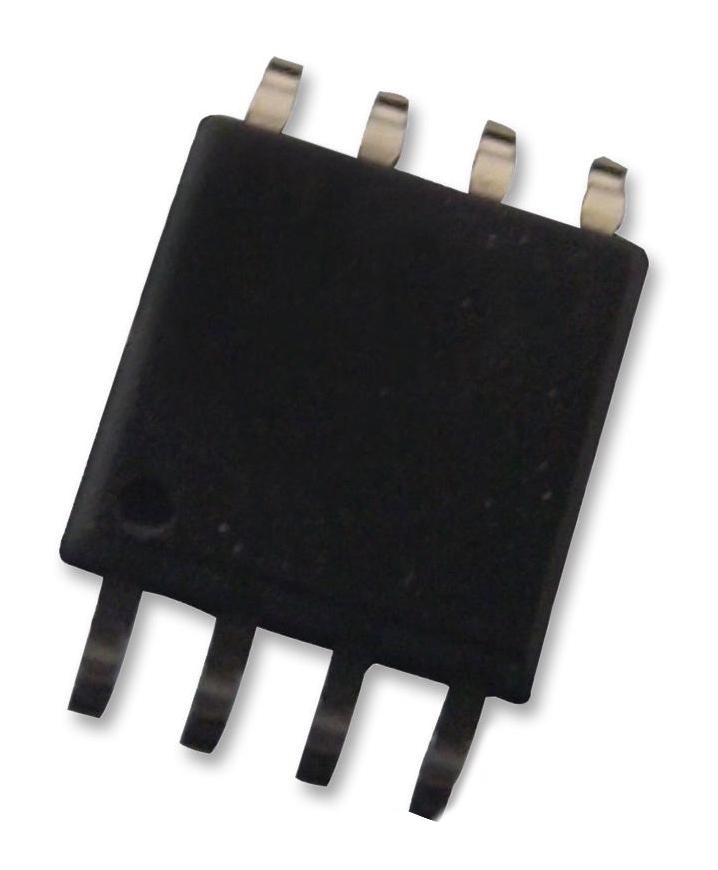

Buy the Maxim Series Ultra-High CMTI Isolated Gate Driver: MAX22702DASA
Purchase the Maxim MAX22702DASA online for reliable isolation and high-speed switching in inverter and motor control systems. Designed with ultra-high CMTI of 300kV/μs and integrated digital galvanic isolation rated for 3kVRms, this device ensures safe and efficient operation of SiC and GaN transistors. Its flexible input options, adjustable UVLO, and robust thermal performance make it ideal for high-voltage industries. Order now to enhance your power conversion projects with industry-leading reliability and safety certifications.
Buy Maxim MAX22702DASA now and experience unmatched reliability and performance in high-voltage switching applications.
