MAXIM INTEGRATED / ANALOG DEVICES MAX5161MEZTT Digital Potentiometer

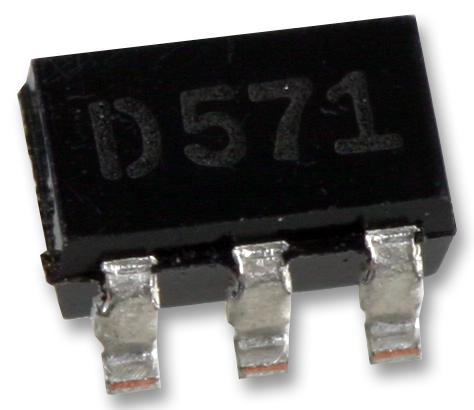

The MAX5161MEZT+T is a low-power, 6-pin SOT-23 digital potentiometer designed for digitally controlled variable resistance applications. It features a linear-taper resistor array with 32 tap points, providing a nominal resistance of 100kΩ and a tolerance of ±25%. The device's wiper resistance is approximately 400Ω, operating with a supply voltage of 2.7V to 5.5V and consuming only 100nA at typical operation. It includes a power-on reset setting the wiper to midscale, glitchless switching, and ±2kV ESD protection. Suitable for LCD adjustment, volume control, and replacing mechanical potentiometers, it guarantees performance over -40°C to +85°C with low temperature coefficient of 5ppm/°C, ensuring stable resistance with minimal temperature drift.
MAXIM INTEGRATED / ANALOG DEVICES MAX5161MEZTT Digital Potentiometer Specifications:
- Type: Digital Potentiometer
- Number of Tap Points: 32
- Resistance Value: 100kΩ
- Tolerance: ±25%
- Wiper Resistance: approximately 400Ω
- Supply Voltage Range: 2.7V to 5.5V
- Operating Temperature Range: -40°C to +85°C
- Temperature Coefficient: 5ppm/°C (ratiometric)
- Power-On Reset: Wiper to Midscale
- ESD Protection: ±2kV
- Supply Current: 100nA
- Package: 6-pin SOT-23
- Switching: Glitchless between taps
Buy the Maxim MAX5161MEZT+T – Reliable Digital Potentiometer for Industrial Applications
Purchase the Maxim MAX5161MEZT+T digital potentiometer online today to enjoy a compact, low-power solution for electronically adjustable resistance. This device offers 32 tap points with glitchless switching, ideal for LCD adjustment, volume control, and replacing mechanical potentiometers. It features a resistance of 100kΩ with a tolerance of ±25%, operating over -40°C to +85°C. The device’s low supply current of 100nA and built-in power-on reset to midscale ensure reliable operation. Its low temperature coefficient guarantees stability and minimal drift, making it a critical component for precise electronic control in industrial and consumer applications.
Get Maxim MAX5161MEZT+T today—built for precision, low power, and long-lasting durability in electronic adjustments.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX5161MEZTT?
You can click on the BUY or RFQ button to purchase MAX5161MEZTT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX5161MEZTT?
You can download the MAX5161MEZTT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX5161MEZTT?
MAXIM INTEGRATED / ANALOG DEVICES
