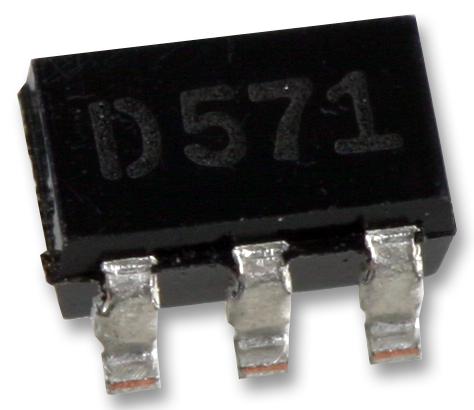

MAXIM INTEGRATED / ANALOG DEVICES MAX5434LEZTT Digital Potentiometer

The MAX5434LEZT+T is a 32-tap, non-volatile linear taper digital potentiometer housed in a 6-pin TSOT-23 package. It functions as a digitally controlled resistor, replacing traditional mechanical potentiometers with a simple 2-wire serial interface. This device features a fast-mode I²C-compatible serial interface supporting data rates up to 400kbps. It is suitable for applications such as digitally controlled resistors, voltage dividers, LCD screen adjustments, and low-drift or programmable gain amplifier circuits. Key specifications include a supply voltage range of 2.7V to 5.25V, an operating temperature range from -40°C to 85°C, and an end-to-end resistance of 50kΩ with ±25% tolerance. The internal EEPROM stores the wiper position for recall on power-up. The device exhibits an end-to-end resistance temperature coefficient of 35ppm/°C and a ratiometric temperature coefficient of 5ppm/°C. It has a typical static supply current of 500nA, with an INL and DNL of ±0.15LSB.

View MAX5434LEZTTDatasheet [pdf]

Buy the Maxim 5434LEZT+T – Reliable Digital Potentiometer for Industrial Applications

Get the Maxim 5434LEZT+T digital potentiometer online today for precise resistance adjustments, low power consumption, and reliable non-volatile memory. Perfect for digital signal processing, LCD bias control, and programmable gain circuits in industrial automation. With a supply voltage range of 2.7V to 5.25V and an operating temperature of -40°C to 85°C, this 6-pin TSOT-23 package offers 50kΩ resistance with excellent long-term stability and high-speed I²C communication support. Enhance your engineering solutions with this dependable and easy-to-integrate device today.

Order your Maxim 5434LEZT+T digital potentiometer today and enjoy precise, low-power resistance control in your industrial projects.
