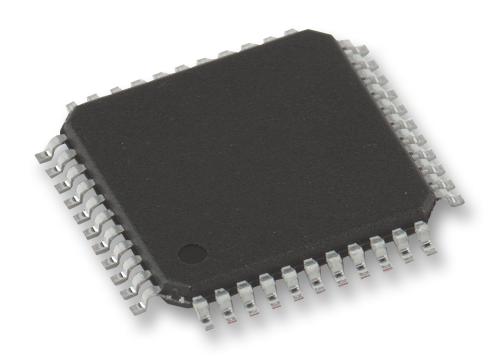

MAXIM INTEGRATED / ANALOG DEVICES MAX547BCMHD Voltage-output DAC
The MAX547BCMH+D is an octal, 13-bit voltage-output DAC with a parallel interface housed in a 44-pin MQFP package. It features on-chip precision output amplifiers for accurate voltage outputs, with four separate reference inputs that enable different full-scale output voltages per DAC pair. The device uses double-buffered logic with dedicated latches, allowing simultaneous updates when load pins are asserted. It offers fast settling time about 5μs to within ±1/2 LSB, operates from ±4.75V to ±5.25V, and can produce unipolar or bipolar voltages up to ±4.5V. Suitable for signal processing, industrial, and avionics applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX547BCMHD Voltage-output DAC Specifications:
- Resolution: 13 bits
- Number of DACs: 8
- Output swing: up to ±4.5V (bipolar or unipolar)
- Supply Voltage Range: ±4.75V to ±5.25V
- Output Settling Time: approximately 5μs to within ±1/2 LSB
- Reference Inputs: 4 separate, each connectable to two DACs
- DAC Latches: Each DAC has dedicated input and DAC latch
- Interface: Double-buffered 13-bit parallel data bus
- Power-On Reset: Resets all DAC outputs to ground
- Operating Temperature Range: 0°C to 70°C
- Package: 44-pin MQFP
- Logic Compatibility: TTL/CMOS
- Application: Signal processing, industrial systems, avionics
Buy the MAXIM Series MAX547 DAC: Octal 13-bit Voltage-Output with Parallel Interface
Order the MAX547BCMH+D online today to enjoy rapid delivery of this high-precision octal 13-bit voltage-output DAC. Designed with double-buffered parallel interface and multiple reference inputs, it provides fast settling time and accurate bipolar or unipolar voltage output up to ±4.5V. Ideal for signal processing, industrial control, and avionics systems, this device ensures reliable operation from a ±4.75V to ±5.25V power supply. Enhance your projects with this versatile, reliable DAC—order now and maximize your system’s performance with ease.
Buy MAXIM MAX547BCMH+D now and experience unmatched reliability and performance in high-precision voltage conversion.
