MAXIM INTEGRATED / ANALOG DEVICES MAX17550ATBEVKIT Power Management Module

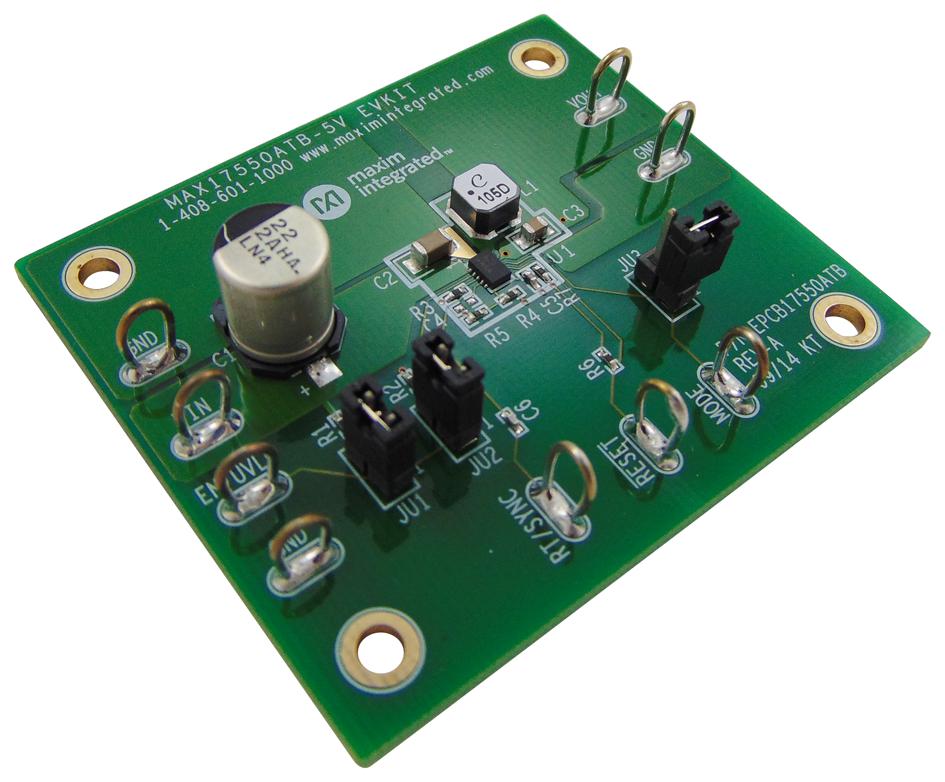

The MAX17550 evaluation kit is a fully assembled, tested circuit board demonstrating a high-efficiency, synchronous buck converter that operates from 6V to 60V input and provides a stable 5V output at 25mA. It features programmable switching frequency at 220kHz, cycle-by-cycle peak current limit, undervoltage lockout, thermal shutdown, and soft-start capability. Ideal for testing and implementing compact power solutions in industrial automation, communications, and other electronics, the kit simplifies design with minimal external components and provides monitoring and control options through included jumpers and pads.
MAXIM INTEGRATED / ANALOG DEVICES MAX17550ATBEVKIT Power Management Module Specifications:
- Input Voltage Range: 6V to 60V
- Output Voltage: 5V
- Output Current: 25mA
- Supply Current (No-load): 26μA
- Switching Frequency: 220kHz (programmable)
- Operating Mode: PFM or Forced-PWM
- Soft-Start Time: 5ms (fixed), adjustable via external capacitor
- Thermal Shutdown Protection: Yes
- Cycle-by-cycle Peak Current Limit: Yes
- En/UVLO Control: via jumpers JU1, JU2
- External Sync Input: RT/SYNC pin
- RESET Output: Open-drain, high when Vout > 95%, low when < 92%
- Package: 10-pin TDFN (3mm x 2mm), RoHS compliant
- Efficiency: Up to 95% at full load
- PCB: Fully assembled, tested, with component layout for optimal thermal and electrical performance
Buy the Maxim MAX17550 – Reliable Power Conversion for Industrial Applications
Enhance your electronic projects with the MAX17550 evaluation kit, offering a robust, efficient, and easy-to-configure 5V step-down power solution. Its wide input voltage range from 6V to 60V enables flexible application in industrial automation, communications, and embedded systems. The kit includes programmable switching frequency at 220kHz, cycle-by-cycle current limit, thermal shutdown, and soft-start capabilities. Fully assembled and tested, it simplifies testing and development with minimal external components and monitoring features, ensuring reliable performance in demanding environments.
Buy Maxim MAX17550 evaluation kit now and experience reliable high-efficiency power solutions for industrial and electronics projects.
