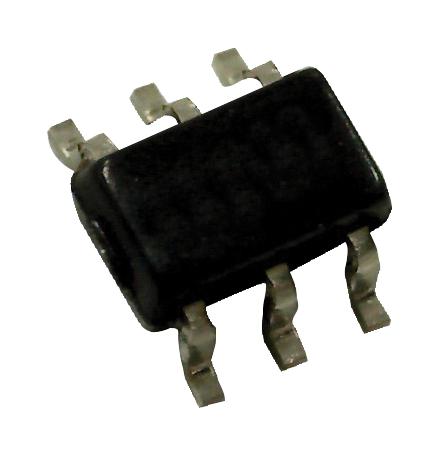

MAXIM INTEGRATED / ANALOG DEVICES MAX5811LEUTT 10-bit low power DAC
The MAX5811LEUT+T from Maxim Integrated is a 10-bit, low-power, serial digital-to-analog converter (DAC) in a 6-pin SOT-23 package. It operates from a single supply voltage ranging from 2.7V to 5.5V and features a 2-wire I²C compatible interface with a fast communication speed of 400kHz. The device consumes only 100µA at 3.6V, with a low-power shutdown mode reducing current to less than 300nA. It includes an internal precision rail-to-rail output buffer, Schmitt trigger inputs for easy interfacing with optocouplers, and a power-on reset circuit that initializes the DAC to a low-value output (power-down mode). The DAC supports three software-selectable power-down output impedances (100kΩ, 1kΩ, or high impedance). Additional features include a read-back mode for data verification, a zero-code error of ±6mV, and a zero-code error temperature coefficient of 2.3 ppm/°C. The device is suitable for battery-powered applications, digital gain and offset adjustments, programmable attenuation, VCO/varactor diode control, and low-cost instrumentation.
MAXIM INTEGRATED / ANALOG DEVICES MAX5811LEUTT 10-bit low power DAC Specifications:
- Resolution: 10 Bits
- Supply Voltage Range: 2.7V to 5.5V
- Supply Current: 100µA at 3.6V, 130µA at 5.5V
- Power-Down Mode Current: <300nA
- Interface: 2-wire I²C compatible, 400kHz
- Output Voltage Range: 0 to Vop
- Output Impedance: 100kΩ, 1kΩ, or high impedance (software selectable)
- DAC Type: Segmented resistor string, monotonic
- Zero-Code Error: ±6mV
- Zero-Code Error Tempco: 2.3 ppm/°C
- Operating Temperature Range: -40°C to +85°C
- Package: 6-pin SOT-23
- Power-On Reset: Initializes DAC to zero scale, power-down mode
- Interface Inputs: Schmitt trigger buffer, CMOS compatible
- Output Buffer: Rail-to-Rail buffer with about 0.5V/µs slew rate
- Applications: Digital gain/offset, programmable attenuation, VCO/varactor control, instrumentation
- Digital Interface: Buffered SDA and SCL lines, open-drain outputs, requires pull-up resistors
Buy the Maxim MAX5811 U– Reliable 10-bit DAC for Industrial Applications
Order the Maxim MAX5811 low power 10-bit DAC online today and enhance your system with precision voltage output and low current consumption. This compact device features a 2-wire I²C interface, adjustable power-down modes, and a rail-to-rail output buffer ideal for battery-powered, industrial, and instrumentation applications. Its low zero-code error and temperature stability ensure high accuracy and reliability. Simple to interface with CMOS logic, it is perfect for digital gain, offset adjustments, VCO/varactor control, and programmable attenuation in space-constrained environments. Reliable and easy to deploy in your electronic designs.
Buy Maxim MAX5811 now and experience unmatched reliability and performance in your digital-to-analog conversion needs, perfect for battery-powered and industrial systems.
