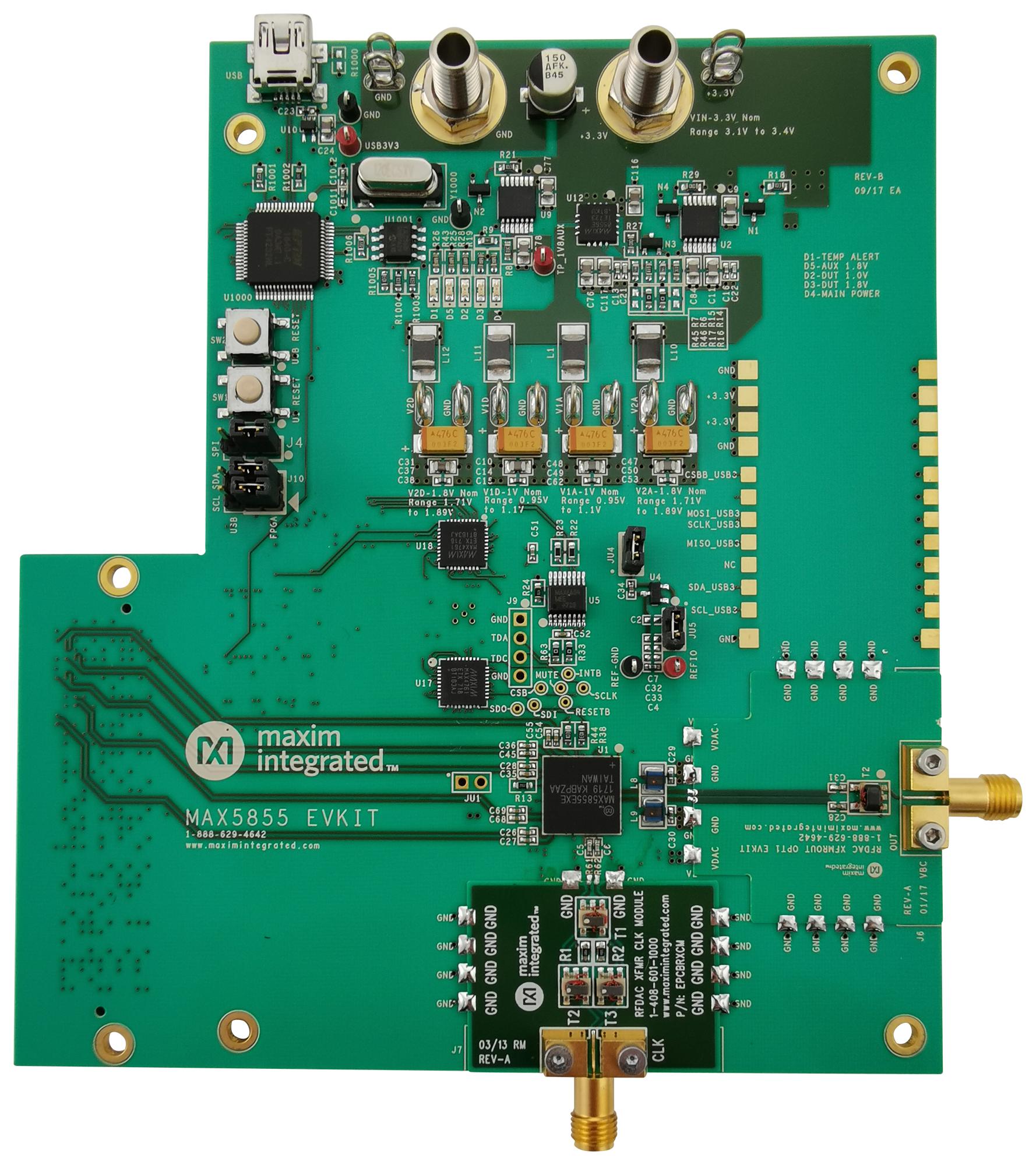

MAXIM INTEGRATED / ANALOG DEVICES MAX5855EVKIT RF Signal Generator
The MAX5855 evaluation kit features a high-performance RF DAC designed for wideband applications, synthesizing signals up to 1GHz bandwidth from DC to over 2.3GHz. It includes a 10-layer PCB, a variety of control interfaces including SPI and SMBus, and supports high-speed JESD204B data transmission via interfaced FPGA boards. The kit offers GUI-based configuration, thermal monitoring, and pattern generation capabilities for testing and evaluating RF signals, making it ideal for research, development, and precise RF communication system design.
MAXIM INTEGRATED / ANALOG DEVICES MAX5855EVKIT RF Signal Generator Specifications:
- PCB Layers: 10-layer, 1oz copper, FR4 and Rogers 4350B dielectric stack-up
- Control Interface: FPGA pass-through (SPI, SMBus) and USB (FTDI4232)
- Supported Data Rate: Up to 9.8304Gbps via JESD204B interface
- Power Supply: 3.3V, 4A; includes onboard linear regulators for 1.8V and 1.0V rails
- DAC Bandwidth: From DC to >2.3GHz, synthesizing 1GHz instantaneous bandwidth
- Control Software: GUI-based, includes pattern loading, register control, thermal threshold setting
- Thermal Monitoring: Via MAX6654 temperature sensor, alert threshold configurable
- PCB Fabrication: 10-layer stack-up with ground planes, matched impedance traces
- Test Patterns: Long and multiple patterns stored in VC707 DDR memory, with pattern management software
- Supported FPGA: Xilinx VC707 board for high-speed data source and control
Buy the Maxim MAX5855EVKIT – Reliable RF DAC for Industrial Applications
Enhance your RF testing and development with our MAX5855 evaluation kit, featuring high bandwidth, advanced control interfaces, GUI software, and thermal monitoring—perfect for engineers and research professionals seeking reliable, high-performance RF solutions.
Get Maxim MAX5855 evaluation kit today—built for precision, high-speed RF signal synthesis, and long-term reliability.
