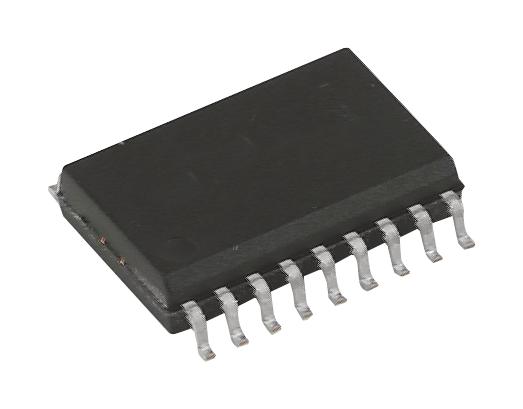

MAXIM INTEGRATED / ANALOG DEVICES MAX620EWN Quad High-Side MOSFET Driver
The MAX620EWN+ from Maxim Integrated Products is a high-performance quad high-side MOSFET driver in an 18-pin WSOIC package. It features four integrated MOSFET drivers and a charge pump, providing a high-side power supply that generates a regulated output voltage 11V above VCC. This allows the drivers to convert TTL/CMOS level inputs into non-inverted outputs capable of swinging from ground to the high-side voltage. The device is suitable for high-side or low-side switching applications, including motor drives, load management in portable devices, and N-channel MOSFET switching systems. It includes undervoltage lockout functionality to prevent operation until the supply voltage reaches the appropriate level, indicated by a power-ready output. The MAX620EWN+ supports a wide operating voltage range from 4.5V to 16.5V, with an operating temperature range from -40°C to 85°C. Features include low quiescent current of 70μA at 5V, a switching frequency of 70kHz, internal quad latch, and input bias current of ±100nA. Its typical applications involve power management, portable device power supplies, motor control, and high- and low-side switching in various power electronics.
MAXIM INTEGRATED / ANALOG DEVICES MAX620EWN Quad High-Side MOSFET Driver Specifications:
- Operating Voltage Range: 4.5V to 16.5V
- Package: 18-pin WSOIC
- High-Side Output Voltage: VCC + 11V (regulated)
- Quiescent Current: 70μA at 5V
- Switching Frequency: 70kHz
- Operating Temperature Range: -40°C to 85°C
- Input Bias Current: ±100nA
- Features: Internal quad latch, undervoltage lockout, Power-Ready output
- High-Side and Low-Side Switching Applications
- Supports TTL/CMOS Compatible Inputs
- Charge Pump with Internal Voltage Regulation
- Suitable for Motor Drives and Load Management
