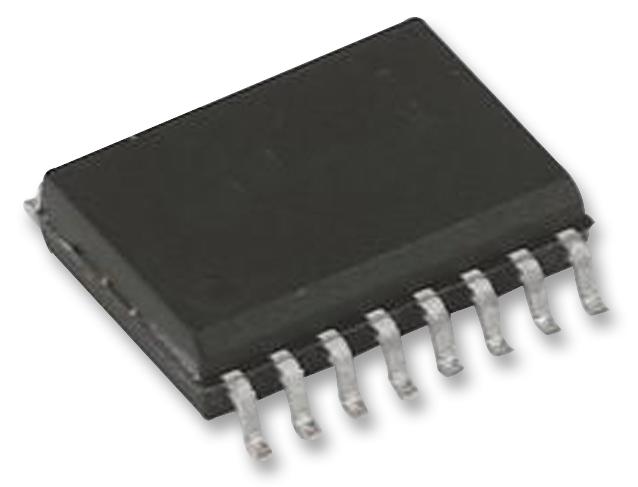

MAXIM INTEGRATED / ANALOG DEVICES DG509ACWE Analog Multiplexer
The DG509ACWE are monolithic CMOS analog multiplexers designed for high-speed, low-leakage switching applications in control systems, data logging, and signal routing. Operating from +4.5V to +18V, these reliable 4-channel differential multiplexers ensure break-before-make switching with low ON-resistance and low power consumption. They support bidirectional operation, TTL and CMOS compatible logic inputs, and feature a latchup-proof, monolithic design suitable for industrial and portable equipment. These high-performance multiplexers enable efficient signal transfer with minimal distortion and high isolation.
MAXIM INTEGRATED / ANALOG DEVICES DG509ACWE Analog Multiplexer Specifications:
- Operating Voltage: +4.5V to +18V
- Channels: 4 differential channels
- On-Resistance: 500Ω typical at Vgs = 10V
- Leakage Current: ±50nA at V+ = +15V
- Break-Before-Make: Yes
- Switching Time: 0.6 to 1.0 μs
- Logic Compatibility: TTL and CMOS
- Supply Current: 0.2mA typical at +15V
- Operating Temp Range: -40°C to +85°C
- Package: Wide SO, CERDIP, Plastic DIP
- Power Dissipation: Derated based on package and temperature
- Input Voltage Range: V- to V+
- Durability: RoHS compliant
Buy the Maxim DG509ACWE – Reliable Analog Multiplexer for Industrial Applications
Purchase the Maxim DG509ACWE online today to ensure highly reliable, low-leakage signal switching for data acquisition, control systems, and portable devices. These multiplexers support bidirectional, differential signals from +4.5V to +18V, providing low ON-resistance and fast switching times essential for high-speed, high-precision applications. Their low power consumption and robust design make them ideal for industrial and portable solutions. Buy now and improve your system's performance with high-quality, easy-to-integrate multiplexers available for quick online ordering.
Order your Maxim DG509ACWE differential CMOS multiplexers today and enhance signal switching in control systems, data loggers, and data acquisition projects.
