MAXIM INTEGRATED / ANALOG DEVICES MAX5135GTG Voltage DAC
The MAX5135GTG+ from Maxim Integrated Products is a 12-bit, voltage-output DAC in a 24-pin TQFN package, designed for low power, high linearity, and precision applications. Operating over +2.7V to +5.25V, it supports SPI, QSPI, MICROWIRE, and DSP-compatible serial interfaces, reducing board space. Equipped with double-buffered registers, hardware reset to zero or midscale, and a high-performance internal or external reference, the device guarantees low gain and offset errors, high linearity with ±0.25 LSB INL, and differential linearity of ±1 LSB. It features a fast 1.25 V/µs slew rate, hysteresis CMOS inputs, an active-low READY pin for daisy chaining, and operates within -40°C to 105°C.
MAXIM INTEGRATED / ANALOG DEVICES MAX5135GTG Voltage DAC Specifications:
- Resolution: 12 bits
- Output Voltage Range: 0 to VREf
- Linearity: INL ±0.25 LSB, DNL guaranteed monotonic ±1 LSB
- Reference: Internal 2.44V or external with impedance of 113kΩ
- Supply Voltage: +2.7V to +5.25V
- Power Consumption: Max ISHDN 2µA
- Output Buffer: Buffered voltage with load capacity of 2kΩ in parallel with 200pF
- Slew Rate: 1.25 V/µs
- Operating Temp Range: -40°C to 105°C
- Serial Interface: SPI, QSPI, MICROWIRE, DSP-compatible
- Power-On Reset: Outputs to zero or midscale based on M/Z pin
- Active-Low READY Pin: Supports daisy chaining, triggers after 24 clock cycles
- Input Hysteresis CMOS Inputs
- Power Dissipation: Derated at 27.8 mW/°C above 70°C
- Package: 24-pin TQFN (4mm x 4mm)
- Pinout includes: REF, REFO, AVDD, GND, CS, SCLK, DIN, LDAC, M/Z, OUT channels
- Environmental: RoHS-compliant, lead-free

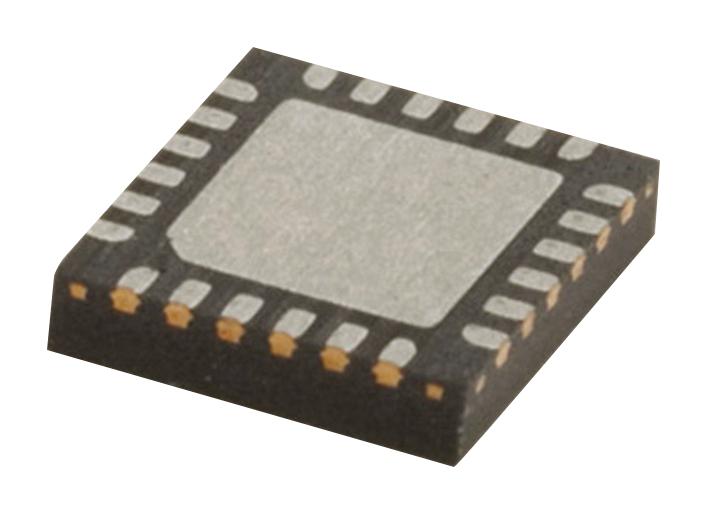

Buy the Buy Maxim MAX5135GTG+ 12-Bit Voltage DAC Part Number MAX5135GTG Online
Enhance your electronic projects with the MAX5135GTG+, a 12-bit voltage-output DAC offering low power consumption, high linearity, and fast SNR performance. This precision device features buffered outputs, double-buffered registers, a wide power supply range from +2.7V to +5.25V, and compatibility with multiple serial interfaces including SPI, QSPI, MICROWIRE, and DSP protocols. It guarantees reliable operation over -40°C to 105°C, incorporates a power-on reset to safety levels, and provides an active-low READY pin for easy daisy chaining. Upgrade your instrumentation, control systems, and automation with this high-performance, RoHS-compliant DAC.
Order your Maxim SeriesMAX5135GTG+ 12-Bit Voltage DAC today and give your projects the dependable precision and high linearity they deserve.
