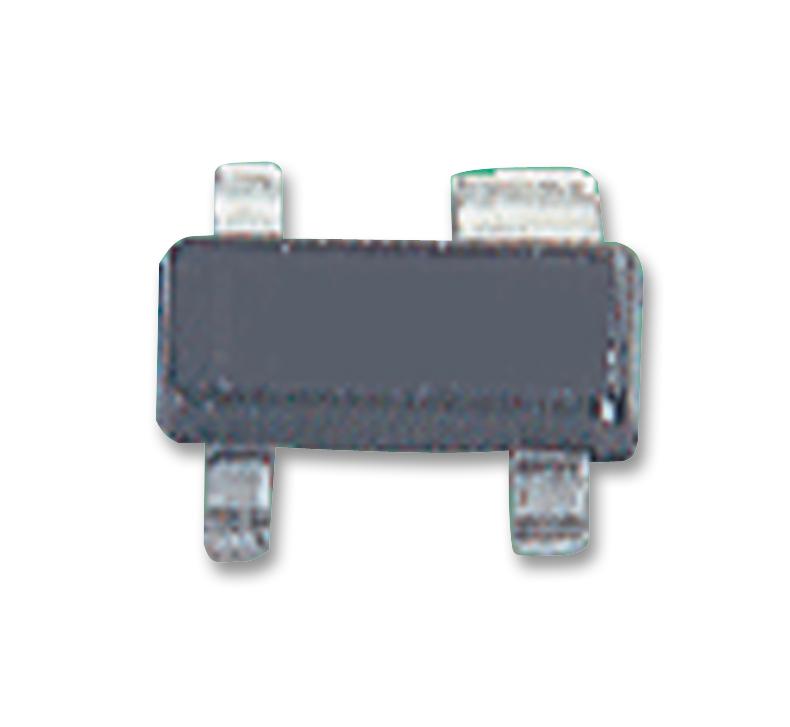

MAXIM INTEGRATED / ANALOG DEVICES MAX6315US29D2T Microprocessor Reset Circuit

The MAX6315US29D2+T from Maxim Integrated Products is a low power, CMOS microprocessor reset circuit housed in a 4-pin SOT-143 package. Designed to monitor power supplies in microprocessor and digital systems, it offers reliable operation without external components or adjustments. This device includes a debounced manual reset input and asserts a reset signal when the VCC voltage drops below a preset threshold or when manual reset is activated. The reset remains asserted for an internally programmed timeout period after VCC recovers above the threshold or manual reset is deasserted. Its open-drain, active-low RESET output can be pulled up to a higher voltage than VCC. Suitable for use in PCs, controllers, microprocessor power monitoring, and automotive applications, it features a supply voltage range from 1V to 5.5V, an operating temperature from -40°C to +125°C, and a typical supply current of 5µA at 5.5V. The reset timeout period is 28ms with a threshold voltage of 2.93V. The device is pin-compatible with the MAX811 and is designed for reliable, low-power system monitoring.

View MAX6315US29D2TDatasheet [pdf]

Buy the Maxim MAX6315U– Reliable Power Monitoring for Industrial Applications

Purchase the Maxim MAX6315U reset circuit online today to ensure reliable power supply monitoring for microcontrollers, controllers, and digital systems. Its low power consumption, wide voltage range, and manual reset capability make it ideal for PCs, automotive, portable equipment, and industrial control systems. Featuring a robust reset timeout period, open-drain output, and temperature range from -40°C to +125°C, this device guarantees system stability even during brownouts and power fluctuations. Order now for quick delivery and enhance your system’s reliability with this dependable reset solution.

Get Maxim MAX6315U today—built for precision and low-power system reset monitoring in industrial and digital applications.
