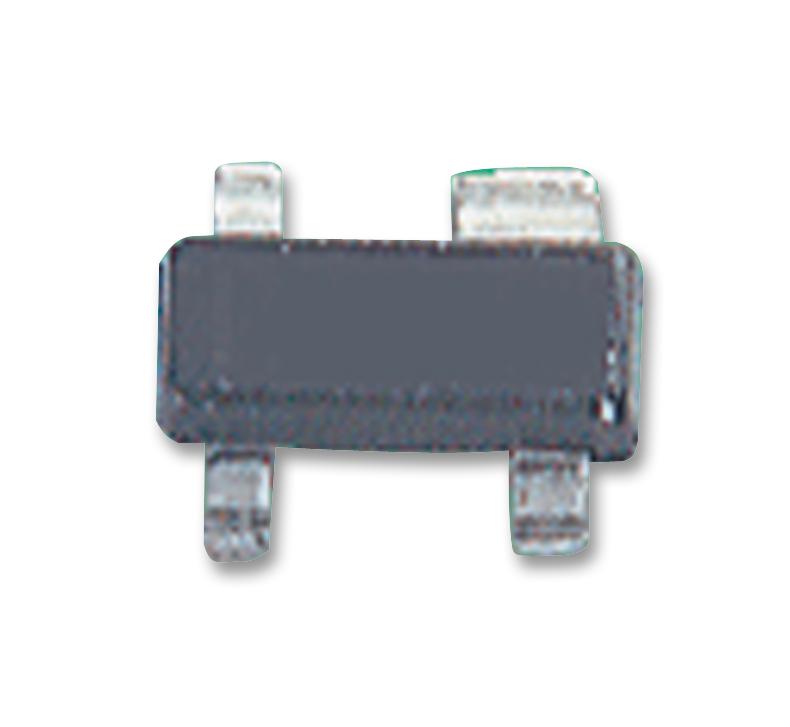

MAXIM INTEGRATED / ANALOG DEVICES MAX6421XS29T voltage supervisor
The MAX6421XS29T is a low-power microprocessor reset circuit in a 4-pin SC-70 package. It monitors system voltage levels from 1.6V to 5V and asserts a reset signal when the supply voltage falls below its threshold. The reset output is active-low and remains asserted for a programmable timeout period after VCC rises above the threshold, with the timeout adjustable via an external capacitor. The device features a reset threshold voltage of 2.925V, operates over a temperature range of -40°C to 125°C, and has a low quiescent current of approximately 1.6µA at VCC ≤ 2V. It is suitable for use in battery-powered systems, embedded controllers, and portable devices, providing reliable system reset monitoring.
MAXIM INTEGRATED / ANALOG DEVICES MAX6421XS29T voltage supervisor Specifications:
- Monitoring Voltage Range: 1.6V to 5V
- Reset Threshold Voltage: 2.925V typical
- Reset Output: Active-low with programmable timeout
- Package: 4-pin SC-70
- Operating Temperature Range: -40°C to 125°C
- Quiescent Current: approximately 1.6µA at VCC ≤ 2V
- Timeout Adjustment: External capacitor between SRT and ground
- Reset Delay Time: Up to 80µs depending on capacitor
- Supply Voltage Range: 1.0V to 5.5V
- Power Dissipation: Derated per package with maximum ratings
- Designed for battery-powered, embedded, and portable applications
Buy the Maxim Series MAX6421 Voltage Supervisor: MAX6421XS29T
Get the Maxim Series MAX6421XS29T now for reliable voltage monitoring and system reset control in portable, embedded, and battery-powered applications. This low-power supervisor provides a programmable reset timeout through an external capacitor, ensuring your system starts correctly during power-up and properly resets during brownouts or voltage dips. Its compact 4-pin SC-70 package, low quiescent current of approximately 1.6µA, and operation from 1.6V to 5V make it ideal for space-constrained designs. Purchase online today to enhance your system's stability and reduce downtime with trusted Maxim quality.
Order your Maxim Series MAX6421XS29T today and ensure reliable system resets for your battery-powered and portable devices.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX6421XS29T?
You can click on the BUY or RFQ button to purchase MAX6421XS29T from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX6421XS29T?
You can download the MAX6421XS29T datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX6421XS29T?
MAXIM INTEGRATED / ANALOG DEVICES
