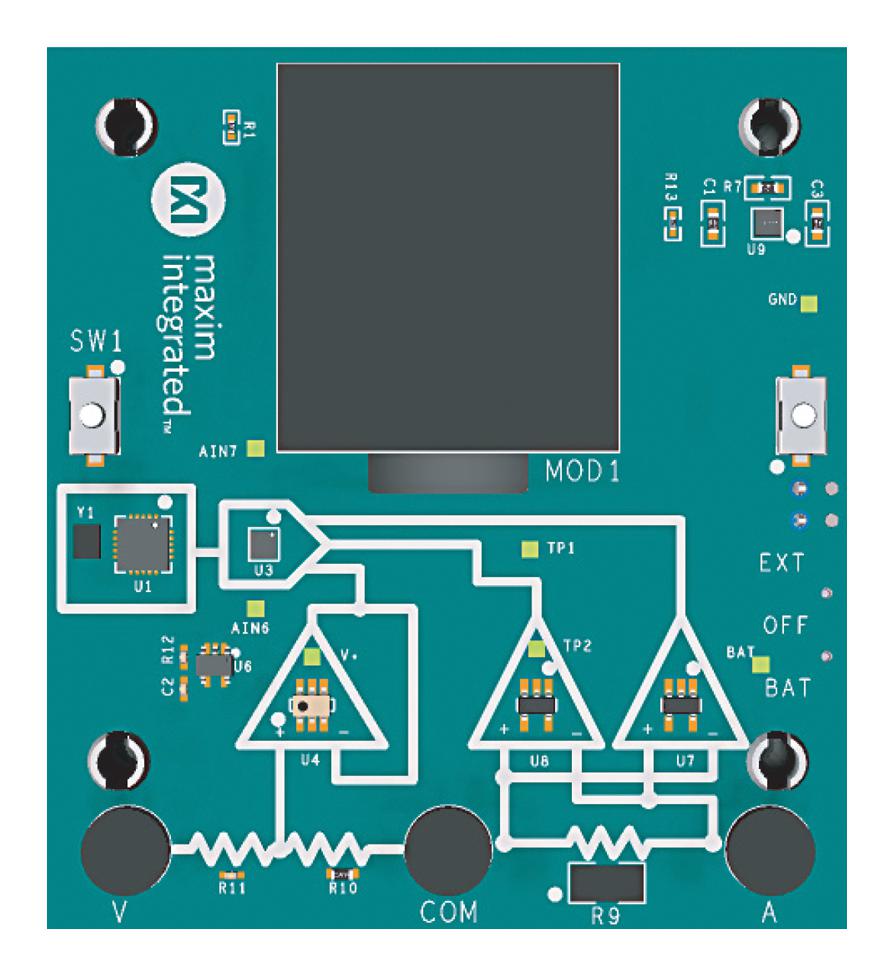

MAXIM INTEGRATED / ANALOG DEVICES MAXNANOPWRBD Low Power Multimeter
The MAXNANOPWRBD evaluation kit demonstrates ultra-low power digital multimeter applications using Maxim’s Nanopower technology. Powered by the MAX32660 Arm Cortex-M4F processor with FPU, it integrates low-power analog components including nanoprocessors, ADC, comparator, and op-amp. The kit features a 128x128 LCD, JTAG interface for debugging, I2C for sensor interfacing, and a coin cell power source. It evaluates functionalities like voltage, current, and frequency measurements, suited for battery-powered IoT and wearable sensor projects, emphasizing portability and energy efficiency.
MAXIM INTEGRATED / ANALOG DEVICES MAXNANOPWRBD Low Power Multimeter Specifications:
- Processor: MAX32660 Arm Cortex-M4F with FPU
- ADC: MAX11615 12-bit, 8-channel
- Op-Amp: MAX40007 Nanopower
- Comparator: MAX9119 Nanopower
- Current Sense Amplifier: MAX9634
- Boost Converter: MAX17222
- Display: 128x128 pixel LCD connected via SPI
- Power Source: 1.5V coin cell or external supply (max 1.5V)
- Interfaces: JTAG SWD, I2C (compatible with QWIIC system)
- Voltage measurement: up to +10V
- Current measurement: up to 100mA
- Size: Compact PCB with SMT components
- Input Range Limits: Voltage and current; do not connect to high-voltage sources to prevent damage
- Operating Voltage: 1.5V (battery), 3.3V (via boost converter)
Buy the Maxim MAXNANOPWRBD Ultra-Low Power Multimeter for IoT and Wearable Devices
Purchase the Maxim MAXNANOPWRBD evaluation kit online today and experience advanced low-power measurement capabilities ideal for IoT, wearable sensors, and portable projects. The kit features a high-efficiency MAX32660 processor, low-power analog components, and a compact design. It supports voltage, current, and frequency measurements through easily accessible terminals, powered by a coin cell or external supply. Perfect for engineers and developers seeking reliable, energy-efficient measurement solutions for battery-powered applications.
Get Maxim MAXNANOPWRBD today—built for precision and long-lasting durability in energy-efficient applications.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAXNANOPWRBD?
You can click on the BUY or RFQ button to purchase MAXNANOPWRBD from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAXNANOPWRBD?
You can download the MAXNANOPWRBD datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAXNANOPWRBD?
MAXIM INTEGRATED / ANALOG DEVICES
