MAXIM INTEGRATED / ANALOG DEVICES MAX7034AUIV RF Receiver Module
The MAX7034 is a low-power CMOS superheterodyne receiver designed for RF applications in the 300MHz to 450MHz range, including 315MHz and 433.92MHz frequencies. It integrates a low-noise amplifier, differential mixer with image rejection, PLL with VCO, and baseband data recovery circuitry, offering high sensitivity of -114dBm and minimal external components. Its features include selectable image rejection centers, low supply current, fast startup, and operation over -40°C to +125°C. Suitable for remote control, security systems, and wireless sensors, it provides reliable multiband RF reception in a compact package.
MAXIM INTEGRATED / ANALOG DEVICES MAX7034AUIV RF Receiver Module Specifications:
- Operating Frequency Range: 300MHz to 450MHz
- IF Frequency: 10.7MHz with 10MHz bandwidth
- Sensitivity: -114dBm at 315MHz and -113dBm at 434MHz
- Supply Voltage: +3.3V or +5.0V (internal regulator with Vpps input)
- Supply Current: <6.7mA during operation, <3.0μA in low-current power-down mode
- Startup Time: 250μs
- RF Image Rejection: 44dB
- Maximum RF Input Level: 0 dBm
- Temperature Range: -40°C to +125°C

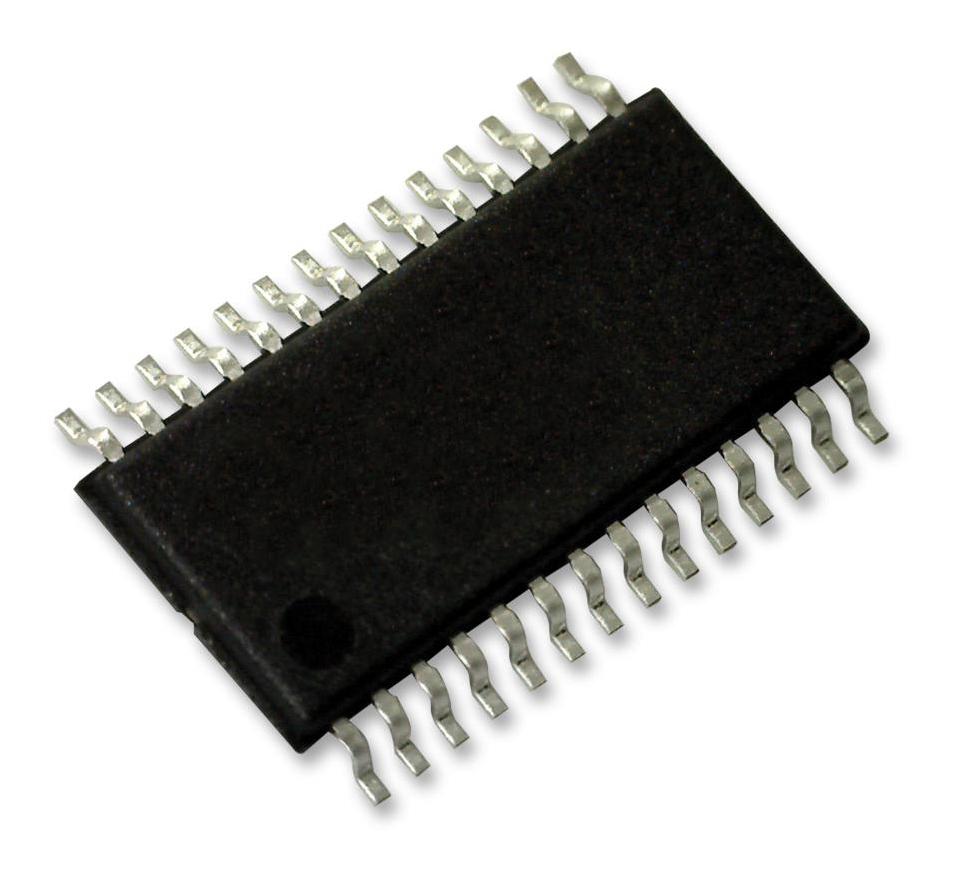

- Package: 28-pin TSSOP (9.7mm x 4.4mm)
- Crystal Oscillator Frequency: 32MHz or 64MHz depending on configuration
- Phase-Locked Loop: Built-in with integrated VCO, crystal-driven
- Data Rate: Up to 66kbps NRZ, 33kbps Manchester
- Input Impedance: 330Ω for mixer, 50Ω for RF input
- Designed to minimize external components, with on-chip regulators and filters.
- Compatible with ASK modulation signals, suitable for remote controls, security systems, wireless sensors.
Buy the Maxim Series SUPERHETERODYNE Receiver: MAX7034AUIV
Discover the MAX7034 superheterodyne RF receiver, designed for 300–450MHz applications including remote controls and security systems. Featuring integrated low-noise amplifier, differential mixer with image rejection, PLL with VCO, and on-chip filtering, it ensures high sensitivity of -114dBm. Its compact 28-pin TSSOP package, low supply current, and excellent temperature range make it ideal for cost-sensitive, power-efficient designs needing robust RF reception. Buy online now and enhance your wireless projects with this high-performance receiver solution.
Order your Maxim Series MAX7034AUIV superheterodyne receiver today and ensure your RF projects have high sensitivity and reliable performance.
