MAXIM INTEGRATED / ANALOG DEVICES MAX713CPE NiMH Battery Charger
The MAX713CPE is a high-performance NiCd/NiMH battery fast-charge controller designed for efficient and reliable charging of 1 to 16 series cells. It features precise voltage slope detection, temperature monitoring, and adjustable charge timers to ensure full charge termination while preventing overcharging. This device supports linear-mode power control, offers trickle charge at C/16, and accommodates high series cell counts with minimal external components. Its integrated circuitry ensures safe, fast, and efficient battery management suitable for portable electronic devices and battery-powered equipment.
MAXIM INTEGRATED / ANALOG DEVICES MAX713CPE NiMH Battery Charger Specifications:
- Supported Cell Count: 1 to 16 series cells
- Maximum Battery Voltage: up to 2.5V per cell
- Input Voltage Range: 5.5V to 19V
- Thermistor Compatibility: 10kΩ to 500kΩ thermistors used for temperature sensing
- Fast Charge Current: Adjustable via sense resistor, typically C/4 to 4C
- Trickle Charge: Set at C/16 ratio for safe battery maintenance
- Clock and Timer: Programmable from 33 to 264 minutes
- Input Pins: VLIMIT, TEMP, PGMO, PGM1, PGM2, PGM3, BATT+, BATT-, GND, DRV, REF
- Power Supply: V+ regulated to +5V, consumes max 5μA from battery during idle
- Protection: Over-voltage, under-voltage, battery temperature, cell voltage
- Operating Temperature Range: 0°C to +70°C or -40°C to +85°C depending on variant
- Package Types: Plastic DIP, Narrow SO, CERDIP
- Additional External Components: Diodes, sense resistors, thermistors, capacitors

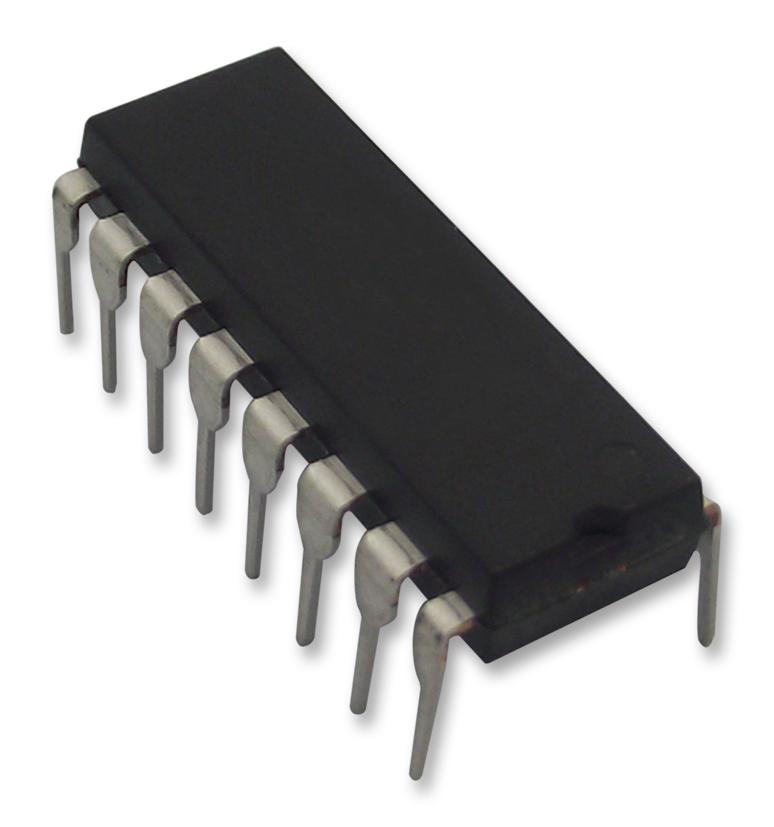

Buy the Buy Maxim MAX713CPE Part Number MAX713CPE Online
Purchase the Maxim MAX713CPE today and benefit from efficient, reliable charging for NiCd and NiMH batteries with fast charge, trickle mode, and temperature safeguards. Designed for 1 to 16 series cells, it ensures safe and complete charge termination through voltage slope, temperature, and timer controls. Its simple external circuitry supports applications in portable electronics like laptops, cordless phones, and consumer devices. Get professional battery management with minimal external components, and enjoy verified performance, safety, and long-term durability by ordering online now.
Order your Maxim MAX713CPE battery charger controller today and ensure fast, safe, and reliable charging for your portable devices and battery packs.
