MAXIM INTEGRATED / ANALOG DEVICES MAX274ACNG Active Filters
The MAX274 and MAX275 are continuous-time active filters designed for industrial applications, offering cascadable 2nd-order sections. They can implement various all-pole responses such as Butterworth, Bessel, and Chebyshev, with center frequencies up to 150kHz for the MAX274 and 300kHz for the MAX275. Operating from a single or dual +5V supplies, these filters provide lower noise, high accuracy within +1% (MAX274) to +0.9% (MAX275), and superior dynamic performance. Ideal for anti-aliasing, DAC smoothing, and frequency filtering in various electronic systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX274ACNG Active Filters Specifications:
- Center-Frequency Range: MAX274 150kHz, MAX275 300kHz
- Accuracy: +1% for MAX274, +0.9% for MAX275 over temperature
- Total Harmonic Distortion: better than -89dB for MAX274, -86dB for MAX275
- Operating Power Supply: Single or dual +5V
- Total harmonic distortion: -86dB to -89dB typical
- Noise: Improved over switched-capacitor filters
- Power Dissipation: 55°C to 125°C, 1000mW maximum for packages
- Pin Configuration: 24-pin Narrow DIP, 28-pin Wide SO, 20-pin DIP
- Temperature Range: 0°C to +70°C (MAX274), -40°C to +70°C (other variants)
- V+ to GND voltage: -0.3V to +12V
- Total harmonic distortion (THD): Better than -86dB to -89dB
- Frequency response: Up to 150kHz/300kHz with high accuracy
- Resistors: Up to 4MΩ typical, with high-value resistor transformation for low frequencies
- Features: No clock noise, cascadable sections, software design support

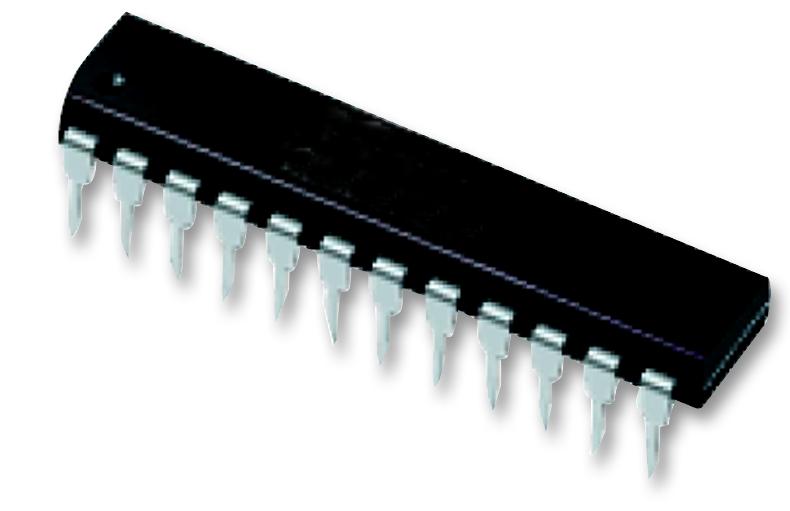

Buy the Maxim MAX274 U–2013 Reliable Active Filters for Industrial Applications
Get the Maxim MAX274 active continuous-time filter now! Designed for high-frequency applications up to 150kHz, it ensures low noise, precise responses, and easy cascading for higher-order filters. Ideal for anti-aliasing, DAC smoothing, and frequency filtering in industrial electronics. With single or dual +5V operation, it offers superior dynamic performance, accuracy within +1%, and reduced THD, making it perfect for demanding analog filtering needs. Order online today to enhance your system’s signal integrity and performance efficiently.
Buy Maxim MAX274 now and experience unmatched reliability and performance for high-frequency analog filtering in industrial systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX274ACNG?
You can click on the BUY or RFQ button to purchase MAX274ACNG from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX274ACNG?
You can download the MAX274ACNG datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX274ACNG?
MAXIM INTEGRATED / ANALOG DEVICES
