MAXIM INTEGRATED / ANALOG DEVICES MAX7221EWG LED Driver
The MAX7221EWG+ is a serially interfaced, 8-digit LED display driver in a 24-pin WSOIC package. It is a compact, common-cathode display driver that connects microprocessors to 7-segment numeric LED displays of up to 8 digits, bar graph displays, or 64 individual LEDs. The device includes an on-chip BCD code-B decoder, multiplex scan circuitry, segment and digit drivers, and an 8x8 static RAM for storing each digit. Only one external resistor is needed to set the segment current for all LEDs. It supports SPI, QSPI, and MICROWIRE interfaces with slew rate-limited segment drivers to reduce EMI. Individual digits can be addressed and updated independently, with options for code-B decoding or no decoding per digit. Features also include low power shutdown mode, brightness control, scan limit register for displaying from 1 to 8 digits, and a test mode that turns all LEDs on. The device operates with a supply voltage range of 4V to 5.5V, supports a 10MHz serial interface, and can control each LED segment individually. It ensures the display is blanked on power-up. Suitable for industrial applications and portable devices.
MAXIM INTEGRATED / ANALOG DEVICES MAX7221EWG LED Driver Specifications:
- Package: 24-pin WSOIC
- Supply Voltage Range: 4V to 5.5V
- Serial Interface: 10MHz, supports SPI, QSPI, MICROWIRE
- Display Capacity: Up to 8 digits, 64 LEDs
- Features: BCD decoder, multiplex scan, static RAM for digits
- External Resistor: One resistor sets all segment current
- Operation Modes: Code-B decode or no decode per digit
- Brightness Control: Digital via intensity register and analog via external resistor
- Low Power Mode: Shutdown with data retention
- Test Mode: All LEDs turn on
- Application: Industrial controls, portable devices

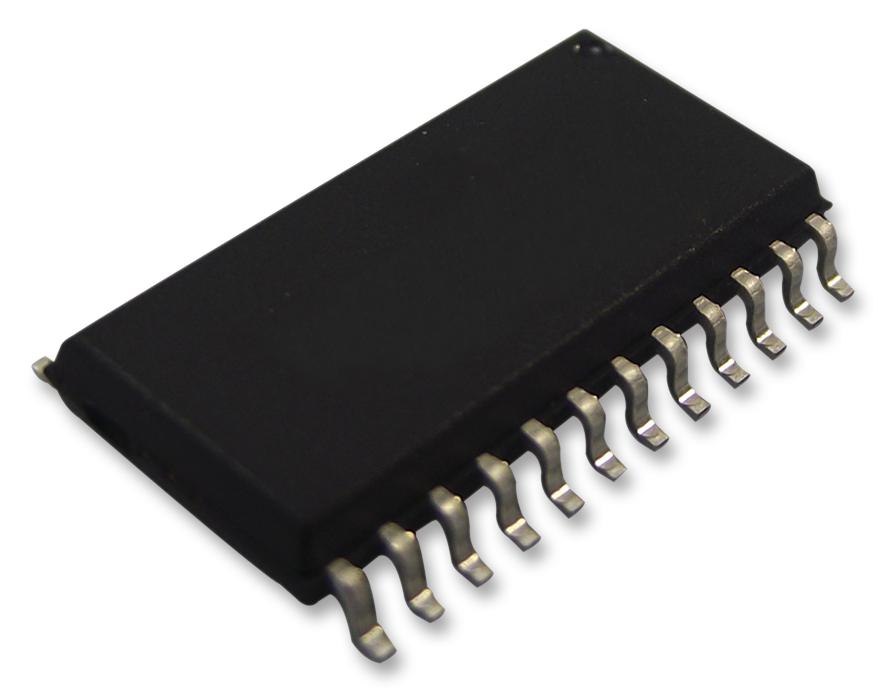

Buy the Maxim Series MAX7221 LED Driver: MAX7221EWG
Experience superior display control with the Maxim MAX7221EWG LED driver, supporting up to 8 digits and 64 LEDs. Its serial interface offers high-speed communication via SPI, QSPI, or MICROWIRE, ensuring fast, reliable performance. The device features comprehensive brightness adjustment, low power shutdown mode, and the ability to independently address each digit or LED. Designed for industrial automation, portable devices, and complex display applications, this driver guarantees efficient operation, minimal EMI through slew rate-limited drivers, and a power-up blanking feature for clean startup. Purchase online today for high-quality, versatile display solutions.
Get Maxim MAX7221EWG today—designed for efficient, bright 7-segment display control with versatile serial interface and low power operation.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX7221EWG?
You can click on the BUY or RFQ button to purchase MAX7221EWG from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX7221EWG?
You can download the MAX7221EWG datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX7221EWG?
MAXIM INTEGRATED / ANALOG DEVICES
