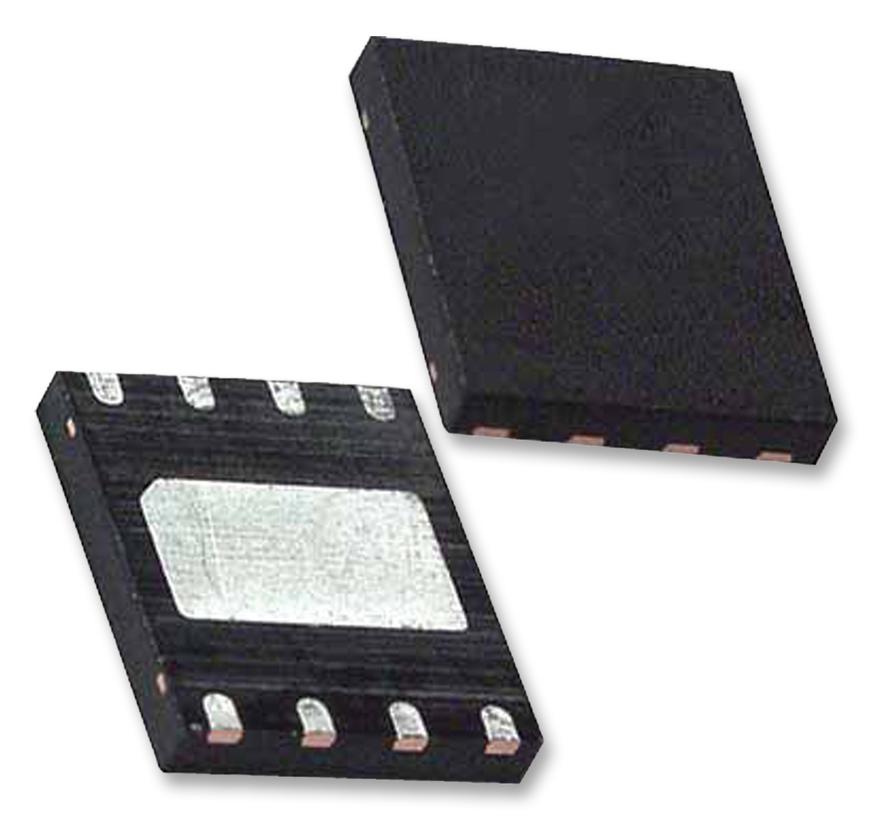

The MAX14575CETA+T from Maxim Integrated Products is a 250mA to 2.5A adjustable current limit switch in 8 pin TDFN package. This programmable current-limit switch features internal current limiting to prevent damage to host devices due to faulty load conditions. It features a low 32mohm (typ) on-resistance and operate from a +2.3V to +5.5V input voltage range. The current limit is adjustable from 250mA to 2.5A making this device ideal for charging a large load capacitor as well as for high current load switching applications. The safety features include thermal shutdown protection to prevent overheating and reverse current blocking to prevent current from being driven back into the source. Typical applications include RF power amplifier in cell phones, USB ports, data modem cards, portable media players, UTCA/ATCA platforms and SDXC card power-supply protection.




Supply voltage range from +2.3V to +5.5V, adjustable current limit (250mA to 2500mA)

Operating temperature range from -40°C to 85°C

Active high EN polarity

Continuous overcurrent response

Flexible part can easily be reused in multiple projects

Low power dissipation reduces heat and/or battery consumption

130µA (typ) low supply current, 32mW (typ) low RON

Integrated protection reduces board space and makes systems more robust

±10% overload current limit (500mA to 2.5A), reverse current protection

1µA (max) shutdown reverse current, short circuit protection, thermal shutdown protection





Data Modem Cards; Portable Media Players; RF Power Amplifier in Cell Phones;SDXC Card Power-Supply Protection; USB Ports; UTCA/ATCA Platforms
