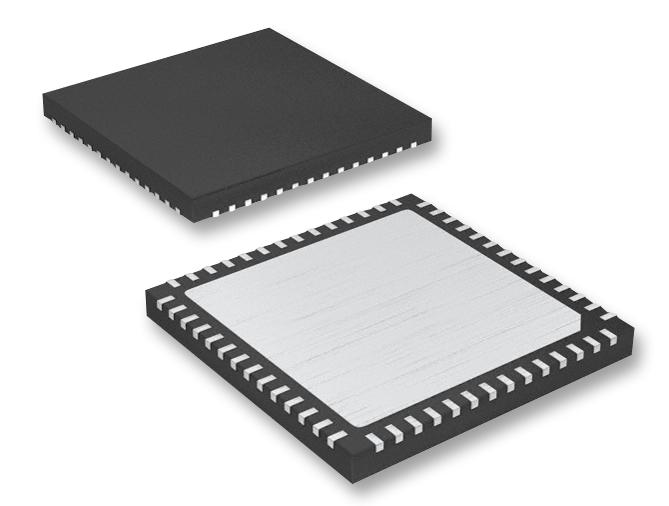

MAXIM INTEGRATED / ANALOG DEVICES MAX3522BCTN Programmable Gain Amplifier
The MAX3522BCTN is a high-performance programmable gain amplifier designed to meet DOCSIS 3.1 standards with a 54dB gain range, dual outputs, and low distortion. It supports a bandwidth of 5MHz to 204MHz, providing +68dBmV output power while exceeding spurious limits. Its SPI-compatible control interface allows precise gain and power adjustments, enabling efficient operation with reduced power consumption. The device features a differential Class A output stage, ideal for cable modem and CPE applications, with thermal management via an exposed pad for optimal heat dissipation.
MAXIM INTEGRATED / ANALOG DEVICES MAX3522BCTN Programmable Gain Amplifier Specifications:
- Gain Range: 54dB in 1dB steps
- Bandwidth: 5MHz to 204MHz
- Output Power: +68dBmV
- Output Impedance: 75Ω
- Supply Voltage: +5V
- Operating Temperature Range: 0°C to +70°C
- Package: 56-pin TQFN, 8mm x 8mm x 0.75mm with exposed pad
- Differential Class A Output Stage
- SPI Control Interface with 3 Registers
- Power Control: 4 power codes for reduced bias current
- Maximum Power Dissipation: 6037.5mW
- Junction Temperature: +150°C
- Input Impedance: 200Ω differential, terminated with external resistors
- Output Termination: 33Ω resistors with 1:4 impedance transformer
- Lead Temperature (soldering): 10s at specified limits
- Thermal Resistance: Junction to Ambient 10°C/W, Junction to Case 1°C/W
