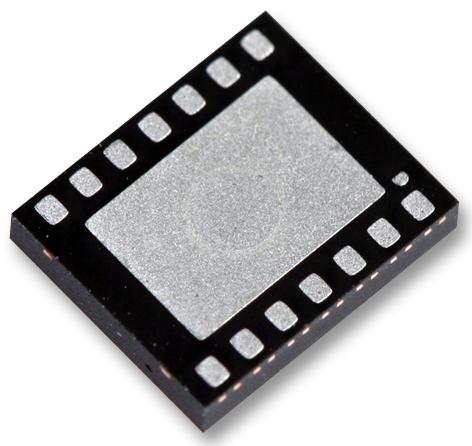

MAXIM INTEGRATED / ANALOG DEVICES MAX8606ETDT Battery Charger
The MAX8606 is a compact, high-efficiency single-cell Li+ battery charger designed for handheld devices, featuring integrated thermal regulation, status flags, and charge management circuitry. Operates from USB or AC adapter with overvoltage protection up to 14V. It includes a SYS output delivering up to 1A for powering systems, an integrated battery switch, and adjustable charge current via external resistor. The device is ideal for cellular phones, smartphones, digital cameras, MP3 players, and USB charging stations, offering safe, reliable, and efficient charging solutions in a small 3x3mm TDFN package.
MAXIM INTEGRATED / ANALOG DEVICES MAX8606ETDT Battery Charger Specifications:
- Package: 3mm x 3mm TDFN with exposed pad, 0.8mm height
- Input Voltage Range: 4.25V to 5.8V, Survives up to 14V
- Output Voltage (SYS): 3.5V to 4.2V, up to 1A power delivery
- Charge Current: Adjustable via resistor from 17.68kΩ to 35.36kΩ (approx. 85-90mA to 712mA)
- Thermal Regulation: Limits die temperature to +100°C, reducing charge current above this
- Input Overvoltage Protection: Up to 14V, UVLO below 4V
- Charging Indicators: CHG (open-drain), active low during charging, blinking in fault
- Logic Inputs: EN1, EN2 for enable, suspend, and current limits; TMR for timer control
- Battery Thermistor Input: External NTC thermistor with 10kΩ at 25°C, monitoring temperature
- System Output: SYS delivers up to 1A, connected to BAT through internal switch when voltage exceeds 3.5V
- Operating Temperature Range: -40°C to +85°C, Storage -65°C to +150°C
- Device dissipation: 14.51mW at Ta=+25°C, derates with temperature
- Regulation: Voltage, thermal, and timer-controlled charging with safety features
