MAXIM INTEGRATED / ANALOG DEVICES MAX9406ETM HDMI Level Shifter

The MAX9406ETM+ is a high-speed display port to DVI/HDMI level shifter in a 48-pin TQFN package. It functions as a quad differential input to current-mode logic (CML) translator, enabling high-speed signal conversion from DisplayPort (DP) to HDMI. The device features an ultra-low propagation delay of 350 ps and channel-to-channel skew of less than 20 ps, supporting typical data rates of 2 Gbps. It provides level shifting for HDMI’s Display Data Channel (DDC) and hot-plug detect (HPD), converting 5V single-ended logic to 3.3V. Applications include level conversion for DP to HDMI, data and clock drivers and buffers, backplane data and clock distribution, as well as in base stations and automated test equipment (ATE). Key specifications include a supply voltage range of 3V to 3.6V, an operating temperature from -40°C to 85°C, a 500 mV differential HDMI output at 2 Gbps, low jitter (DJ = 11 psP-P, RJ = 0.5 psRMS), and integrated 50 ohm input terminations and biasing.

View MAX9406ETMDatasheet [pdf]

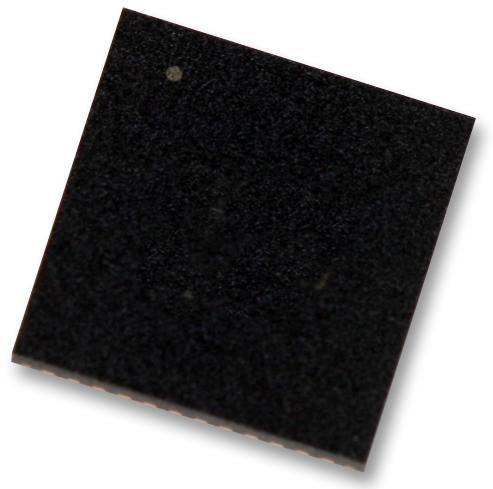

Buy the Buy Maxim MAX9406ETM High-Speed HDMI Level Shifter Online

Experience seamless high-speed signal conversion with the Maxim MAX9406ETM. Supporting up to 2 Gbps data rates, this device offers ultra-low delay of 350ps and minimal channel skew of less than 20ps. It features integrated 50Ω terminations and converts 5V logic to 3.3V for HDMI DDC and HPD signals. Perfect for applications like DP to HDMI level shifting, backplane data distribution, and base stations, this reliable component ensures performance and durability in demanding environments. Order today for efficient connectivity solutions.

Get Maxim MAX9406ETM today—built for high-speed signal conversion with ultra-low delay and skew, ideal for HDMI and DisplayPort applications.
