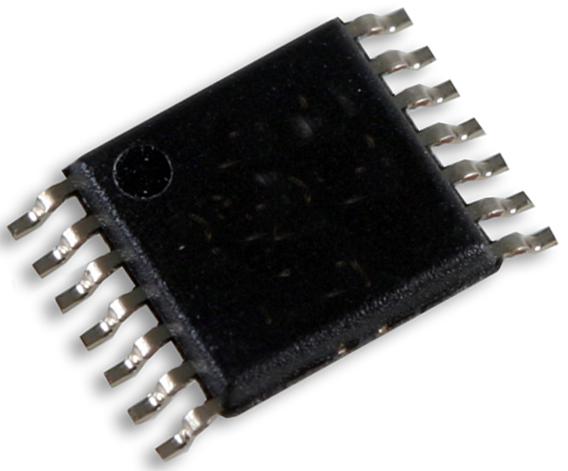

MAXIM INTEGRATED / ANALOG DEVICES MAX4534CUD High-Voltage Multiplexer
The MAX4534CUD+ is a fault-protected, high-voltage, single 4-to-1 multiplexer designed for reliable signal routing in industrial and data acquisition systems. It features fault-protected inputs, rail-to-rail operation, and overvoltage clamping at 150 mV beyond the supply rails, ensuring safe operation during voltage transients. The device offers ±40V overvoltage protection with power off and ±25V with supplies on. Its maximum on-resistance is 950 ohms, with channel-to-channel matching within 25 ohms at 25°C, supporting TTL compatibility with +12V or dual ±15V supplies. Suitable for signal switching, redundancy, and backup systems, it operates over 9V to 36V supplies and a 0°C to 70°C temperature range. When power is off, all channels are off, and during faults, outputs are clamped to supply voltages. With a fault response time of 20 ns, 1 kΩ clamp resistance, charge injection of 2 pC, and excellent off isolation and crosstalk, it ensures high performance and safety in demanding applications such as aerospace, industrial control, and process automation.
MAXIM INTEGRATED / ANALOG DEVICES MAX4534CUD High-Voltage Multiplexer Specifications:
- Supply Voltage Range: 9V to 36V, (±4.5V to ±20V)
- Operating Temperature: 0°C to 70°C
- Fault Protection Voltage: ±40V with power off, ±25V with supplies on
- On-Resistance: Max 950Ω
- Channel-to-Channel Match: 25Ω at 25°C
- Input Voltage Range: V- to V+ with overvoltage clamp at 150mV beyond rails
- Fault Response Time: 20ns
- Leakage Current: 2nA at common off/on states at 25°C
- Charge Injection: 2pC
- Off Isolation: -62dB
- Crosstalk: -65dB
- Power Dissipation: 500mW (14-pin TSSOP)
