MAXIM INTEGRATED / ANALOG DEVICES MAX98089ETN Stereo Audio Codec
The MAX98089ETN+ is a low-power, stereo audio codec with FlexSound technology housed in a 56-pin TQFN package. It features high-performance audio processing with efficient power consumption and integrates class D speaker amplifiers capable of delivering up to 1.7W per channel at 8 ohms and 2.9W at 4 ohms. The device includes a stereo class H headphone amplifier with a dual-mode charge pump, eliminating the need for output coupling capacitors. It also offers mono differential and stereo line outputs, supporting multiple input configurations such as FM radio sources. Additional features include automatic gain control (AGC), noise gating for microphone inputs, and extensive click and pop reduction circuitry. The IC supports dual I2S/PCM/TDM digital audio interfaces, operates over a voltage range of 1.65V to 3.6V, and can handle temperatures from -40°C to 85°C. Its high integration saves board space and supports master clock frequencies from 10MHz to 60MHz. Power consumption is approximately 5.6mW for DAC to headphone output at 97dB dynamic range, with a total supply current of 4.5mA in specific configurations. Suitable applications include portable devices, consumer electronics, and audio systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX98089ETN Stereo Audio Codec Specifications:
- Package: 56-pin TQFN (7mm x 7mm x 0.75mm)
- Power Supply: 1.65V to 3.6V operating range
- Audio Power Output: 1.7W at 8Ω, 2.9W at 4Ω
- DAC Power: approx. 5.6mW at 97dB DR
- Temperature Range: -40°C to 85°C
- Supports MCLK from 10MHz to 60MHz
- Supports dual I2S/PCM/TDM interfaces, sample rates 8kHz to 96kHz
- Features: Class D speaker amplifier, Class H headphone amp, AGC, noise gate, click/pop reduction
- Low power consumption, high integration for space saving
- Suitable for portable electronics, consumer audio, portable devices

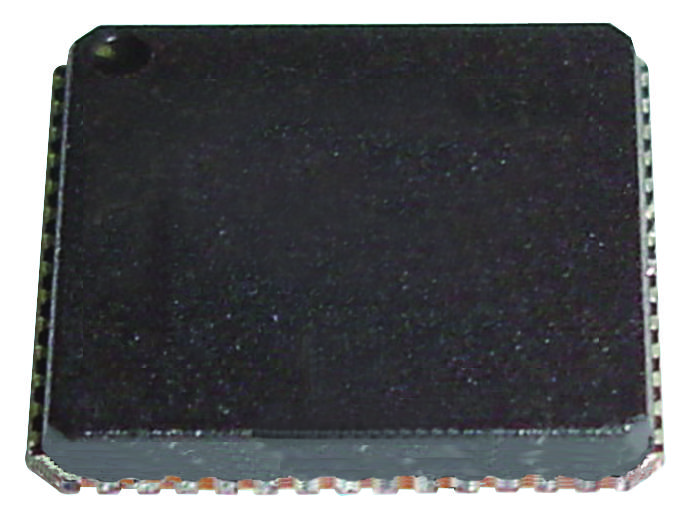

Buy the Maxim Series MAX98089 Low-Power Stereo Audio Codec: 56-Pin TQFN
Buy the Maxim MAX98089ETN+ online today for advanced stereo audio processing in compact form. Featuring FlexSound technology, efficient class D amplifiers, high-quality headphone and stereo line outputs, and support for multiple digital audio formats, this device is ideal for portable electronics and consumer audio products. It offers low power consumption of around 5.6mW at 97dB dynamic range, operates from 1.65V to 3.6V, and works across temperatures from -40°C to 85°C. Its integrated features include AGC, noise gating, click and pop reduction, and dual I2S/PCM/TDM interfaces, making it a versatile, space-efficient solution for modern portable audio systems.
Get Maxim MAX98089 today—built for efficient audio performance and space-saving portable applications.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX98089ETN?
You can click on the BUY or RFQ button to purchase MAX98089ETN from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX98089ETN?
You can download the MAX98089ETN datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX98089ETN?
MAXIM INTEGRATED / ANALOG DEVICES
