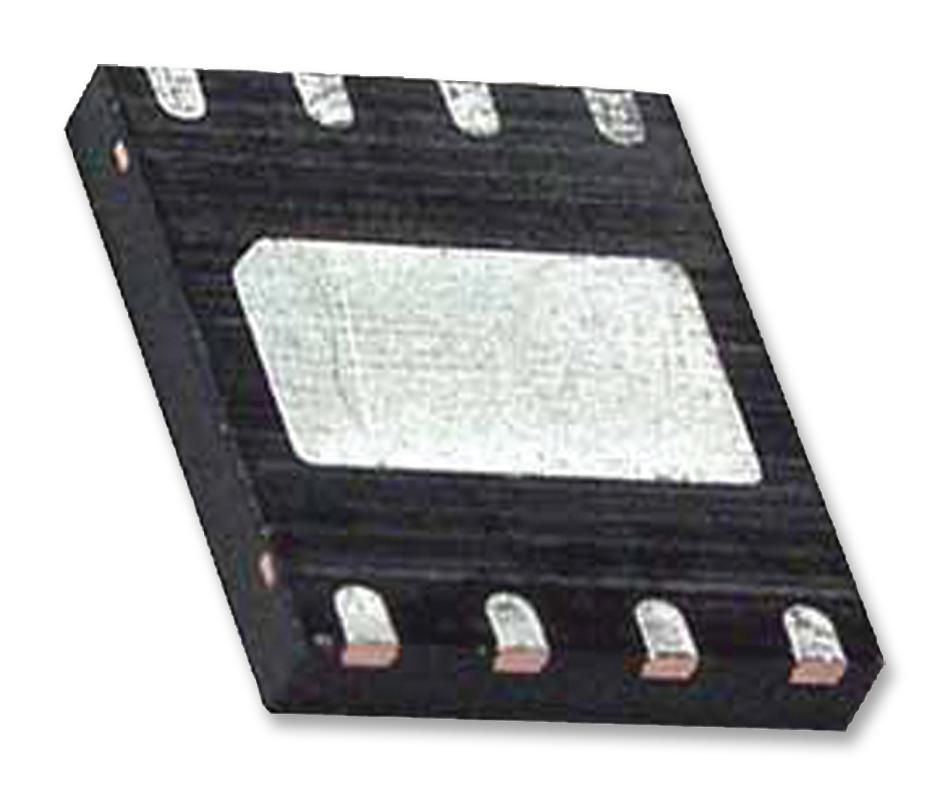

MAXIM INTEGRATED / ANALOG DEVICES MAX2614ETAT Broadband Amplifier
The MAX2614 is a high-performance broadband gain block operating from 40MHz to 4GHz. It features an industry-leading flat frequency response, low noise figure of 2.0dB at 2.0GHz, and high output power of up to +19.5dBm. Its small 2mm x 3mm TDFN package enhances thermal efficiency and ease of integration. Suitable for applications including cellular infrastructure, microwave radios, and wireless LAN, it offers adjustable biasing for optimized performance, making it ideal for wideband design needs with robust input overload handling and excellent linearity across the frequency spectrum.
MAXIM INTEGRATED / ANALOG DEVICES MAX2614ETAT Broadband Amplifier Specifications:
- Frequency Range: 40MHz to 4GHz
- Noise Figure: 2.0dB at 2.0GHz
- Gain: 18.6dB typical
- Output Power (P1dB): +19.5dBm
- Output IP3: +30 to +37dBm depending on model
- Supply Voltage: 3V to 5.25V
- Supply Current: 40.6mA to 80.6mA
- Input Return Loss: 12dB at 40MHz to 4GHz
- Output Return Loss: 12dB at 40MHz to 4GHz
- Power Gain Flatness: 0.1 to 0.5dB
- Operating Temperature Range: -40°C to +85°C
- Package: 2mm x 3mm TDFN, lead-free
- ESD Rating: 2.5kV HBM
Buy the Maxim Series 40MHz to 4GHz Broadband Amplifier: MAX2614ETAT
Improve your wireless and microwave system performance with the broadband amplifier MAX2614ETAT. Operating from 40MHz to 4GHz, it offers low noise figure, high output power, and exceptional linearity in a compact 2mm x 3mm TDFN package. Perfect for cellular infrastructure, microwave radios, and wireless LAN applications, its adjustable bias supports performance optimization. The device's rugged design ensures robust input overload handling and stable operation across wide frequency and temperature ranges. Buy online now for dependable quality and seamless integration into your engineering solutions.
Order your Maxim Series MAX2614ETAT broadband amplifier today and enhance your wireless and infrastructure projects with reliable, high-gain performance.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX2614ETAT?
You can click on the BUY or RFQ button to purchase MAX2614ETAT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX2614ETAT?
You can download the MAX2614ETAT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX2614ETAT?
MAXIM INTEGRATED / ANALOG DEVICES
