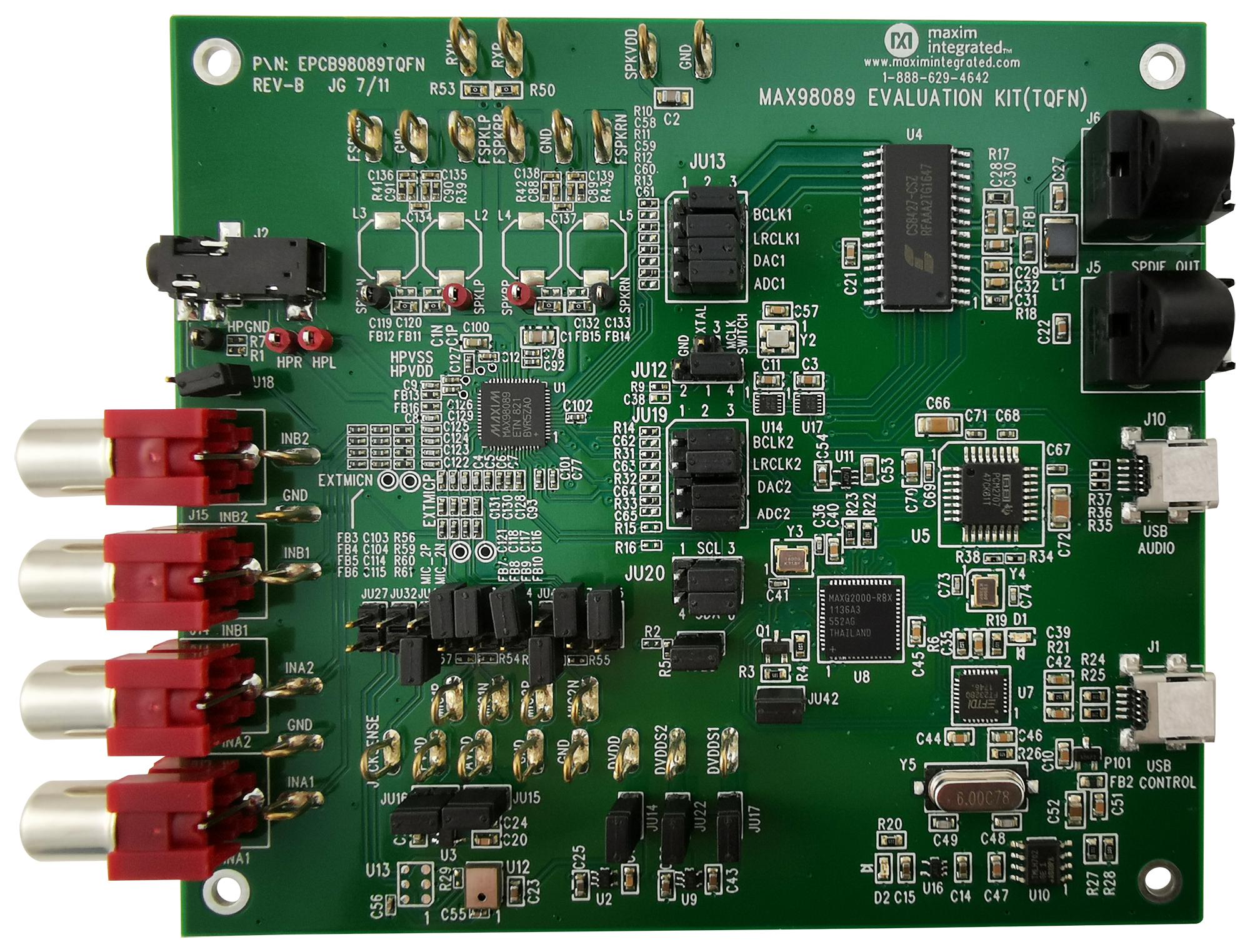

MAXIM INTEGRATED / ANALOG DEVICES MAX98089EVKITTQFN Audio Codec Evaluation Kit
The MAX98089 evaluation kit is a fully assembled and tested circuit for evaluating the MAX98089 audio codec in a TQFN package. It features microphone, line, and headphone amplifiers, stereo Class D amplifiers, a digital signal processor, and supports USB-to-I2S, S/PDIF, and I2C interfaces. The kit includes Windows-compatible software for easy control, access to all analog and digital inputs/outputs, and external support circuitry to facilitate comprehensive testing and development of audio applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX98089EVKITTQFN Audio Codec Evaluation Kit Specifications:
- Power Supply: 2.8V to 5.5V, 1A DC
- Audio Codec: MAX98089 in 56-pin TQFN-EP package
- Interfaces: USB-to-I2C, USB-to-I2S, S/PDIF transceiver
- On-Board Components: Digital microphone, clock source, filter circuitry
- Software Compatibility: Windows XP, Vista, 7
- Supply Voltage: Allows external powering or USB bus power
- Filters: Ferrite bead + capacitor filters for EMI reduction
- Amplifiers: Stereo Class D, DirectDrive® headphone amplifiers
- Dimensions: Calibrated PCB with component placement for testing
- Supported Clocks: Internal 13MHz oscillator or external clock
- Input/Output: Digital and analog audio inputs/outputs, jack detection
- Jumper Options: Configurable clocksource, microphone biasing, interface selection
Buy the MAXIM Series Evaluation Kits Audio Codec: MAX98089
Enhance your audio development with the MAX98089 evaluation kit by Maxim. Fully assembled and tested, it features multiple interfaces including USB, S/PDIF, and I2C, along with digital microphones and stereo amplifiers. Compatible with Windows XP, Vista, and 7, this kit offers easy software control and access to all inputs and outputs, making it ideal for testing, prototyping, and developing high-performance audio solutions with comprehensive hardware support.
Buy MAXIM MAX98089 evaluation kit now and experience unmatched audio quality, flexible interfaces, and robust development support for your audio applications.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX98089EVKITTQFN?
You can click on the BUY or RFQ button to purchase MAX98089EVKITTQFN from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX98089EVKITTQFN?
You can download the MAX98089EVKITTQFN datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX98089EVKITTQFN?
MAXIM INTEGRATED / ANALOG DEVICES
