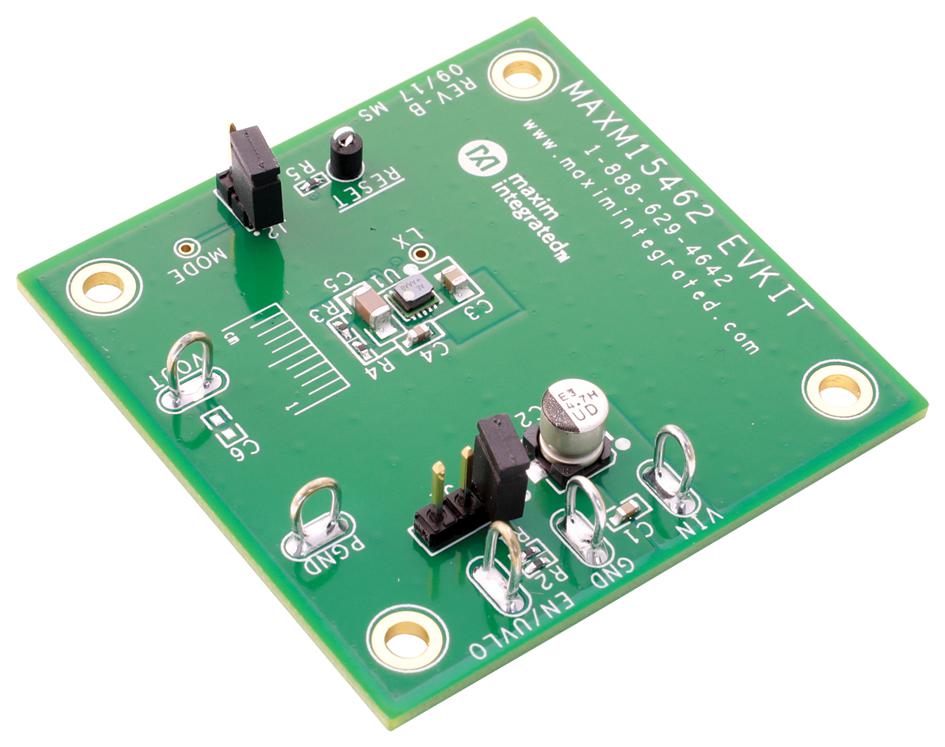

MAXIM INTEGRATED / ANALOG DEVICES MAXM15462EVKIT Step-Down Power Module

The evaluation kit for the high-voltage, high-efficiency synchronous step-down DC-DC converter features an integrated design that supports a wide input voltage range from 4.5V to 42V. It delivers a stable 3.3V output capable of supplying up to 300mA load current. The kit is equipped with adjustable input undervoltage lockout, selectable operation modes, and an open-drain active-low RESET signal. With a switching frequency of 500kHz and using peak current mode control, it offers enhanced efficiency with a typical 80.5% at 24V input and 3.3V output load of 150mA. Additional protections include overcurrent and overtemperature shutdown. The design incorporates low-profile surface mount components, a proven PCB layout, and is fully assembled and tested for rapid deployment. This versatile power solution is suitable for applications such as 4-20mA current-loop powered sensors, battery-operated devices, point-of-load modules, HVAC and building control systems, industrial sensors, process control, and LDO replacement.

View MAXM15462EVKITDatasheet [pdf]

Buy the Buy Maxim High-Voltage Step-Down Power Module Part Number MAXM15462EVKIT Online

Invest in the Maxim MAXM15462EVKIT online today to access a proven, high-efficiency step-down DC-DC converter evaluation kit. This all-in-one module supports input voltages from 4.5V to 42V, providing a stable 3.3V output at loads up to 300mA. Featuring adjustable UVLO, PWM/PFM mode selection, and robust protections like overcurrent and overtemperature shutdown, it ensures reliable performance across various industrial applications. Easy to set up and fully tested, this kit accelerates your product development process, enabling quick deployment of efficient power management solutions for sensors, battery devices, and control systems.

Buy Maxim MAXM15462EVKIT now and experience a high-efficiency, reliable power solution for industrial and automation applications.
