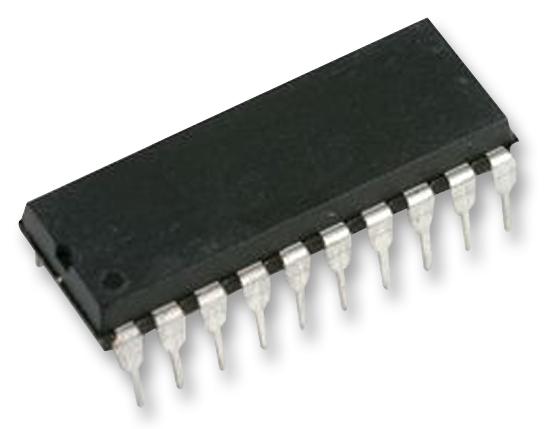

MAXIM INTEGRATED / ANALOG DEVICES MAX333ACPP Quad Analog Switch
The MAX333ACPP+ is a precision quad SPDT CMOS analog switch housed in a 20-pin DIP package. It features four independent switches that operate with bipolar supplies ranging from ±4.5V to ±20V or a single-ended supply between +10V and +30V. The device offers low on-resistance (less than 35 ohms), with channel-to-channel matching within 2 ohms and a flat resistance over the signal range (maximum 3 ohms). It includes break-before-make switching with typical turn-off times of 10ns, turn-on times less than 175ns, and turn-off times less than 145ns. The switch is ideal for portable applications due to its low quiescent current of less than 50 microamps when all inputs are high or low. Manufactured with an advanced silicon-gate process, it features TTL and CMOS compatible logic inputs operable within +0.8V to +2.4V regardless of supply voltage. The device can handle analog signals with rail-to-rail capability, supporting operating temperatures from 0°C to 70°C. Other key features include low charge injection (10pC), low power consumption (3.75mW), and ESD tolerance greater than 2000V per method 3015.7. Its applications include signal processing, portable devices, and communication and networking systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX333ACPP Quad Analog Switch Specifications:
- Supply Voltage Range: ±4.5V to ±20V bipolar, +10V to +30V single-ended
- On Resistance: less than 35Ω typical, channel-to-channel match within 2Ω
- Resistance Flatness: maximum 3Ω over signal range
- Charge Injection: 10pC
- Turn-Off Time: 10ns typical
- Turn-On Time: less than 175ns
- Off Time: less than 145ns
- Low Quiescent Current: <50μA at all inputs high or low
- Power Consumption: 3.75mW
- ESD Tolerance: >2000V
- Operating Temperature Range: 0°C to 70°C
- Package: 20-pin DIP
- Logic Compatibility: TTL and CMOS, operable between +0.8V to +2.4V
- Analog Signal Handling: Rail-to-rail, with supports up to ±30V
