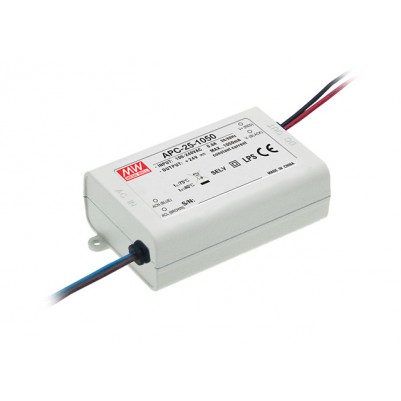

MEAN WELL APC25500 Single Output Switching Power Supply
The MEAN WELL APC-25 series is a line of 25W single output switching power supplies suitable for a wide range of applications, particularly LED lighting, LED decoration, and advertisement displays. These power supplies offer a compact design, universal AC input, and a variety of protective features including short circuit and over voltage protection. They are designed for high reliability and efficiency, making them a cost-effective solution for powering various electronic devices. The APC-25-500 model specifically provides a DC voltage range of 15-50V and a rated current of 500mA, making it ideal for powering LED strips and other low-voltage devices. Compliance with safety standards like UL8750 and EN60950-1 ensures safe operation.
MEAN WELL APC25500 Single Output Switching Power Supply Specifications:
- Constant current mode: power supply
- Universal AC input: Full range
- Withstand voltage: 300VAC Surge input for 5 s
- Protections: Short circuit / Over voltage
- Cooling: Free air convection
- Design: IP42
- Burn-in: 100% full load
- Application: Suitable for LED related fixture or application
- Cost: Low cost / High reliability
- Warranty: 2 years
- LPS: Except for APC-25-350
- Input Voltage Range: 90 ~ 264VAC; 127 ~ 370VDC
- DC Voltage Range: 15~50V
- Rated Current: 500mA
- Rated Power: 25.2W
- Output: 300mVp-p
- Line Regulation: ±5.0%
- Load Regulation: ±1.0%
- Setup, Rise Time: ±3.0%
- Frequency Range: 47 ~ 63Hz
- Efficiency: 83%
- AC Current: 0.4A/230VAC; 0.8A/115VAC
- Leakage Current: 0.25mA / 240VAC
- Working Temperature: -30 ~ 70 ℃
- Working Humidity: 20 ~ 90% RH non-condensing
- Storage Temperature & Humidity: -40 ~ +80 ℃, 10 ~ 95% RH
- Temperature Coefficient: ±0.2%/(0 ~ 50 ℃)
- Vibration: 10 ~ 500Hz, 2G 10min./1cycle
- MTBF: 518.9K hrs min.
- Dimension: 84*57*29.5(L*W*H)
- Inrush Current: COLD START 45A(twidth=310 s measured at 50% Ipeak) at 230VAC
- Over Voltage: 76 ~ 94V, 41 ~ 49V, 55 ~ 68V, 27 ~ 35V
- Safety Standards: UL8750, CSA-C22.2 No. 250.0-13, BIS IS15885, EAC TP TC 004
- EMC Emission: Compliance to EN55032,EN61000-3-2 Class A,EN61000-3-3, EAC TP TC 020
- EMC Immunity: Compliance to EN55024,EN61000-4-2,3,4,5,6,8,11
