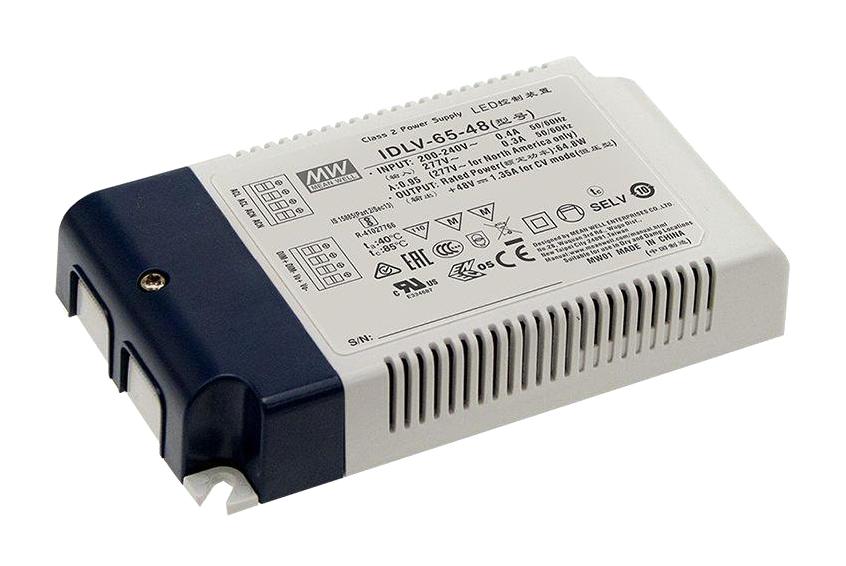

MEAN WELL IDLV6548 LED Driver
The IDLV-65 series is a 65W PWM output LED driver designed for indoor LED lighting and decorative applications. It operates from 180~295VAC, offering models with output voltages ranging between 12V and 60V. Featuring high efficiency up to 90% and a fanless design, it ensures reliable operation in temperatures from -20°C to +85°C. The driver supports constant voltage PWM output at 1KHz frequency, includes built-in active PFC, and provides options for 2-in-1 dimming (dim-to-off) and auxiliary 12V DC output. Its plastic housing adheres to Class II safety standards, making it suitable for various LED architecture lighting installations.
MEAN WELL IDLV6548 LED Driver Specifications:
- Rated Power: 50.4W to 64.8W depending on model
- Output Voltage Range: 12V, 24V, 36V, 48V, 60V
- Rated Current: 4.2A at 12V, 1.8A at 24V, 1.354A at 36V, 1.084A at 48V, 1.084A at 60V
- Efficiency: Up to 90%
- Input Voltage: 180~295VAC
- Frequency: 47~63Hz
- Power Factor: >0.95
- Inrush Current: 30A at 230VAC
- Leakage Current: <0.75mA at 277VAC
- No Load Power Consumption: <0.5W (Blank-Type)
- Dimensions: 130mm x 75mm x 25mm
- Operating Temperature: -20°C to +85°C
- Protection: Over current 105-115%, auto recovery; Short circuit shutdown
- Certifications: UL, CSA, EN55015, EN61000-3-2/-3, GB17743, GB17625.1
- Vibration Resistance: 10-500Hz, 2G for 60 minutes along X, Y, Z axes
- Case Temp Max: +85°C
Buy the Mean Well Series DLV-65 LED Driver: IDLV-6548
Experience reliable and energy-efficient lighting with the IDLV-6548 LED driver. Its high efficiency up to 90%, advanced PWM dimming, and operating temperatures from -20°C to +85°C make it ideal for indoor decorative and architectural lighting projects. With built-in active PFC, multiple safety features, and a compact design, this driver ensures stable power delivery for LED systems. Easy to install, compatible with various dimming protocols, and backed by a 3-year warranty, it’s the perfect choice for professional lighting installations.
Get Mean Well IDLV-6548 today—built for precision and long-lasting durability in LED lighting.
Frequently Asked Questions
Where can I buy MEAN WELL IDLV6548?
You can click on the BUY or RFQ button to purchase IDLV6548 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part IDLV6548?
You can download the IDLV6548 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of IDLV6548?
MEAN WELL
