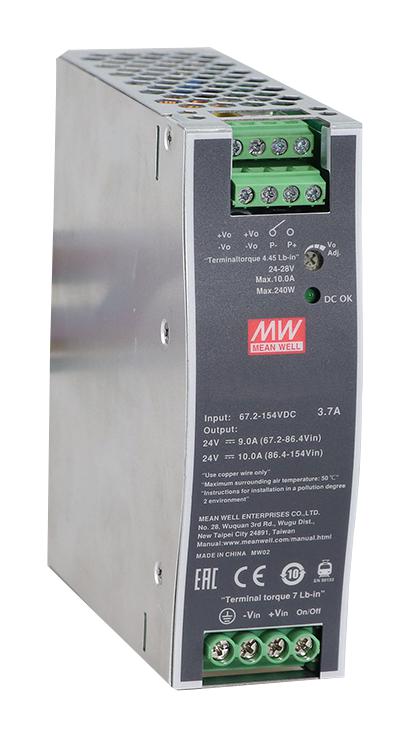

MEAN WELL DDR240D24 DC-DC converter
The DDR-240D series is a high-performance 240W DIN Rail DC-DC converter designed for industrial and railway control systems. It features a width of only 40mm and wide input voltage ranges of 67.2~154V, supporting 24V output at 10A with ultra-wide operating temperatures from -40°C to +70°C. The converter provides full protections including short circuit, overload, over voltage, over temperature, input reverse polarity, and input under voltage. With 4KVdc reinforced input/output isolation, remote ON/OFF, DC OK relay contact, high efficiency, and excellent vibration and environmental resistance, it is ideal for reliable industrial automation, transportation, and communication applications.
MEAN WELL DDR240D24 DC-DC converter Specifications:
- Power Rating: 240W
- Output Voltage: 24V
- Output Current: 10A
- Input Voltage Range: 67.2~154V
- Input Reverse Polarity Protection: Yes
- Input Under Voltage Protection: Yes
- Output Ripple & Noise: 80mVp-p
- Voltage Tolerance: ±1.0%
- Line Regulation: ±0.5%
- Load Regulation: ±1.0%
- Efficiency: 92.5%
- Working Temperature: -40°C to +70°C
- Isolation Voltage: 4KVdc
- Protections: Short circuit, Overload, Over voltage, Over temperature
- Remote ON/OFF Control: Yes
- DC OK Relay Contact: Max 30V/1A resistive load
- Vibration Resistance: IEC61373 compliant
- Dimensions: 125.2mm x 40mm x 113.5mm
- Mounting: DIN rail TS-35/7.5 or TS-35/15
- MTBF: 484,900 hours
Buy the Buy Mean Well DDR240D Series 240W DIN Rail DC-DC Converter Part Number DDR240D24 Online
Purchase the Mean Well DDR240D DIN Rail DC-DC converter online today. This 240W high-efficiency power supply features a wide input range, robust protections, and durable design suitable for industrial automation, railway control, telecom, and security systems. Easy to install via DIN rail TS-35/7.5 or TS-35/15, it offers excellent temperature performance from -40°C to +70°C, reinforced isolation, and a convenient remote ON/OFF switch. Ensure your projects' power needs with dependable, high-quality power solutions ordered easily online.
Order your Mean Well DDR240D Series high-power DIN rail DC-DC converter today and ensure reliable, efficient power for industrial and railway control systems.
Frequently Asked Questions
Where can I buy MEAN WELL DDR240D24?
You can click on the BUY or RFQ button to purchase DDR240D24 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part DDR240D24?
You can download the DDR240D24 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of DDR240D24?
MEAN WELL
